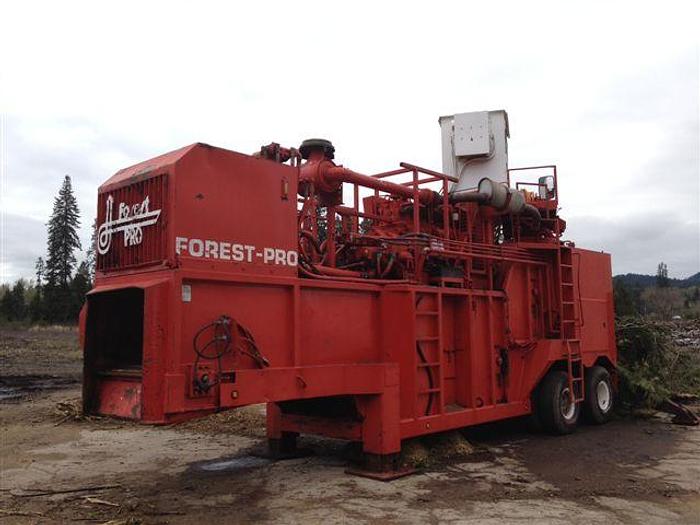

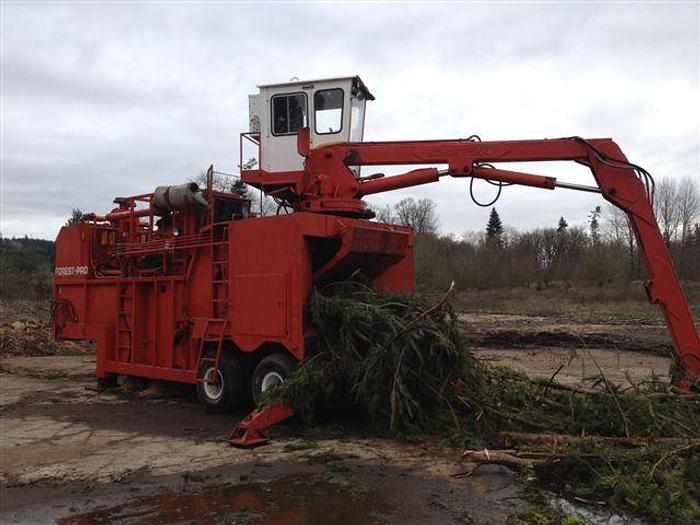

ForestPro Debarking System

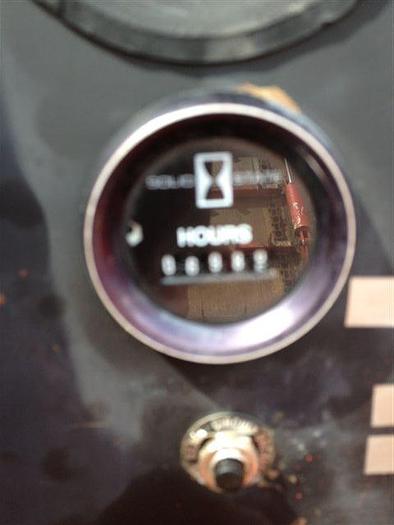

Flail - 23" capacity - Hydraulically gear box driven dual horizontal chain flails - Single or double chain capabilities - Heavy duty steel housing pillow block bearings - 2-15/16" diameter shafts - Adjustable for large or small diameter timber - 6980 hours Feed System - Hydraulically driven heavy duty top and bottom infeed rolls - The top wheel is hydraulically powered up and down for easier feed and crushing power on limby material - 24" x 48" opening - Feed rate adjustable - 70' to 160' per minute Frame, Suspension, Tires and Brakes - Heavy duty tube and I-beam frame members with cross bracing - 20,000 lbs. tandem axles with dual wheels - 25,000 lbs. optional with loader - (8) eight 10:00 x 15" tires - Lights and brakes to I.C.C. specifications Hitch - 5th wheel - standard Hydraulic System - Open loop system w/multiple pressure settings - 400 gallon hydraulic tank - in-tank hydraulic filters both suction and return - Hydraulic vane pumps - Hydraulic oil cooler - Sight and temperature gauges Stabilizer and Out-Riggers - Dual hydraulic rear stabilizers standard - Front out-riggers optional with loader Fuel System - (2) two removable 100 gallon tanks - Spin-on cartridge filters Loader - Self-contained operators cab - Complete gauges and controls Dimensions - 28' long x 8'-6" wide x 12'-6" high w/o loader (14'-2" w/loader fold down cab) - Weight - 51,000 lbs w/o loader, 58,000 lbs w/loader Conveyors - Dual debris conveyors - Hydraulically driven - 5' wide thru conveyor 3" x 3" flights w/131 chain - 4' wide exit conveyor w/C-188 chain - Exit conveyor to height of 11'
