2000 Flare Edger Optimizer System
Contact us for price
Surrey, Canada
orCall (604) 575-0046
Description

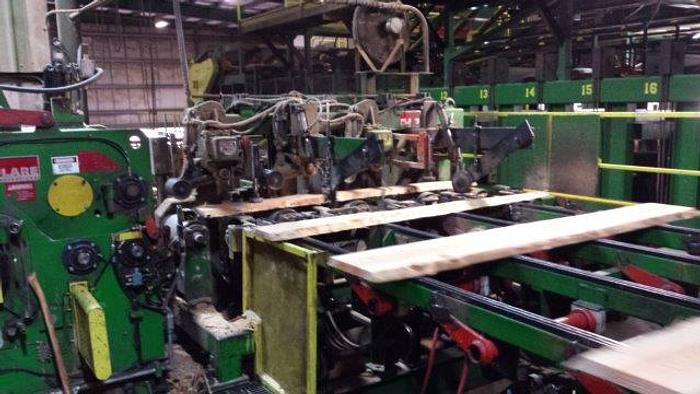

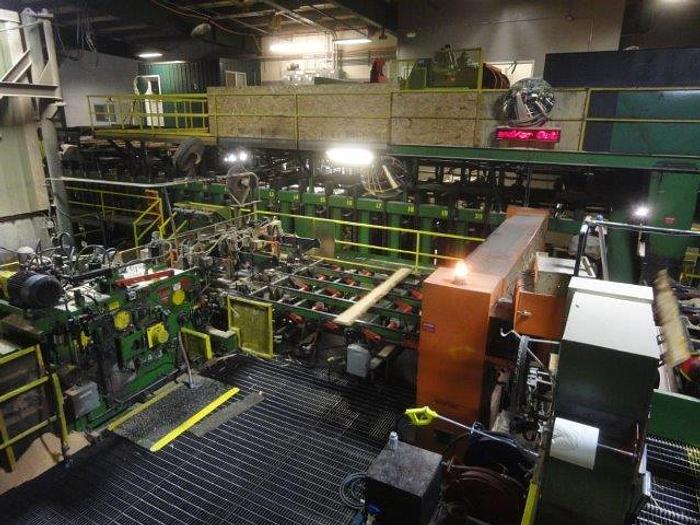

Flare Edger Optimizer System
- Built in 2000
- 1" + 2" (4" capacity), 6' to 10'
- No unscrambler
- Turn pass gate

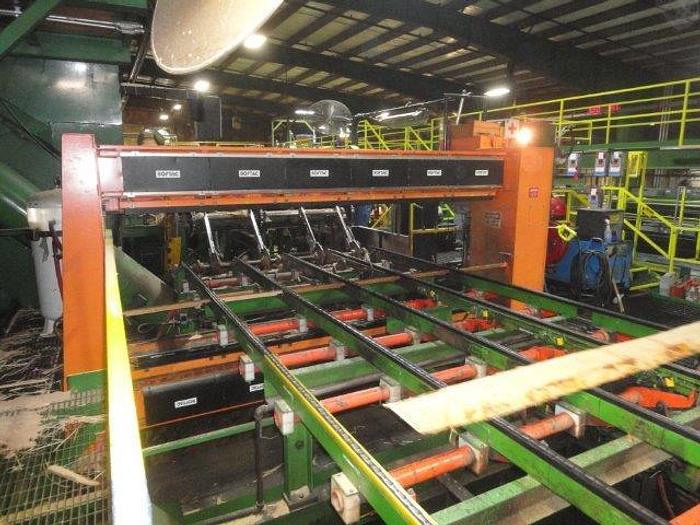

- Scanner transfer c/w seven (7) sets of air operated hook stops
- Flare infeed positioning table c/w
- Three (3) servo positioned board positioners (clamp style)
- Bed chains
- Top pressrolls
- 7-1/2 HP feedworks drive unit

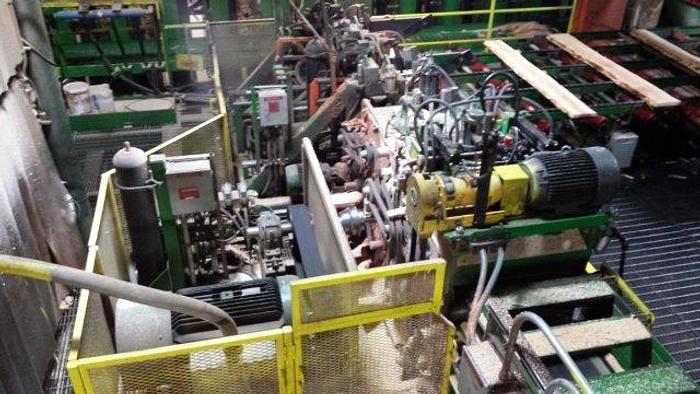

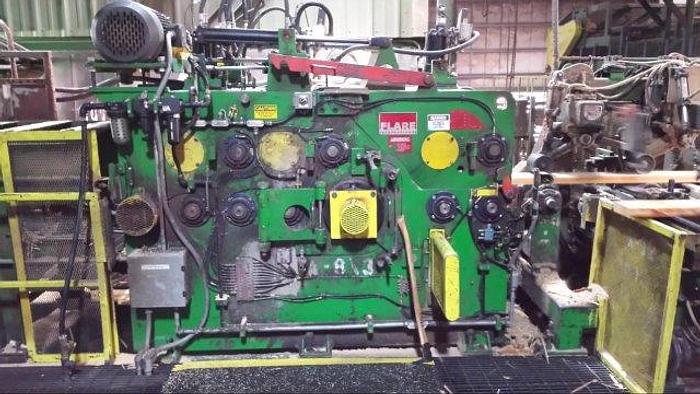

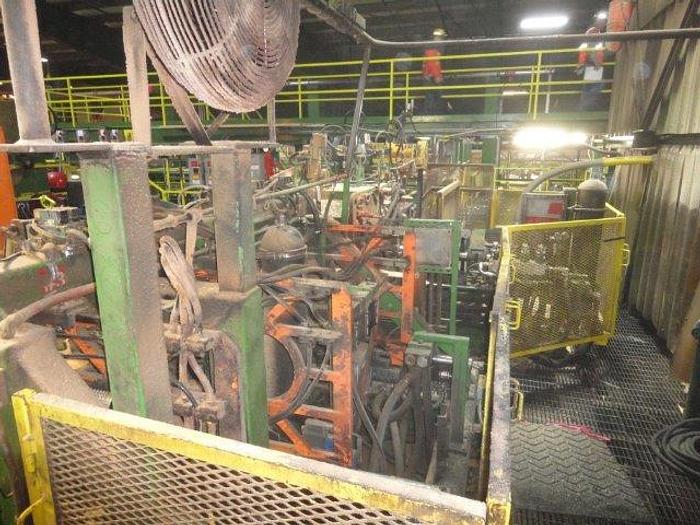

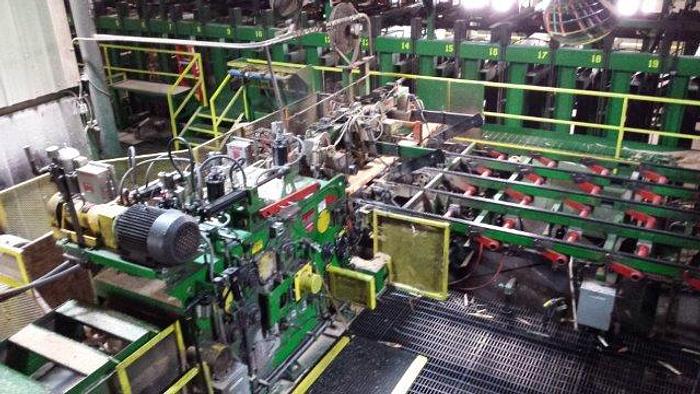

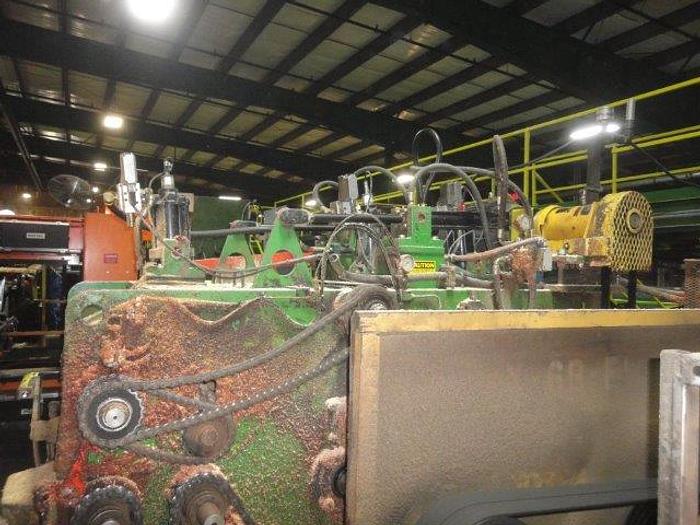

- Flare 4" x 36" BA edger
- Four (4) shifting saws c/w spare set of saw guides
- One (1) infeed and two (2) outfeed pressrolls c/w air operated servo cylinders
- Two (2) infeed and four (4) outfeed bedrolls
- 20 HP electric feedworks drive
- 300 HP (460/3/60) main arbor motor c/w belt drive assembly

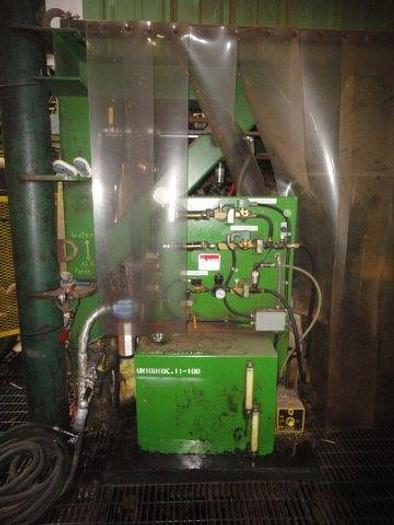

- Saw guide lube system
- Babbitt fixture

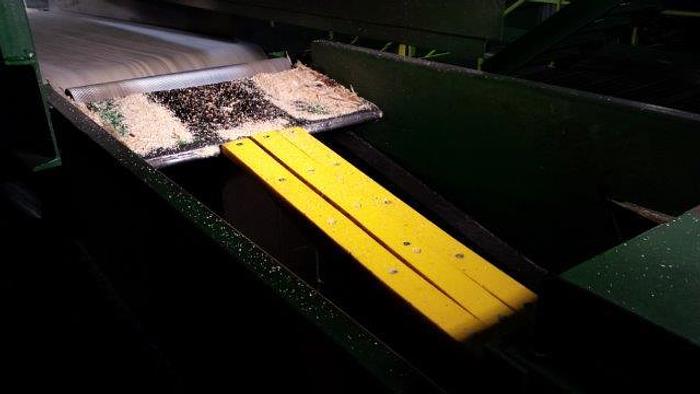

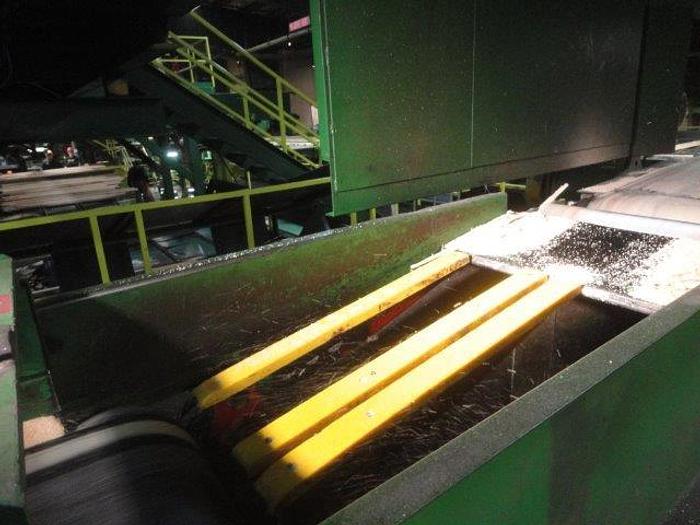

- Outfeed belt c/w three (3) servo positioned picker fingers and electric drive

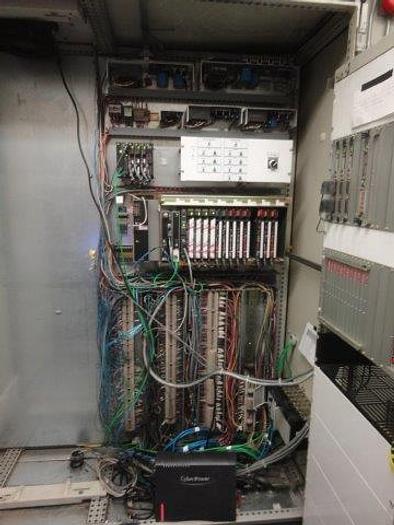

- Allen Bradley PLC 530 based control system c/w QB setworks controllers for infeed and saws
- RMC100 position controllers for pressrolls and picker fingers

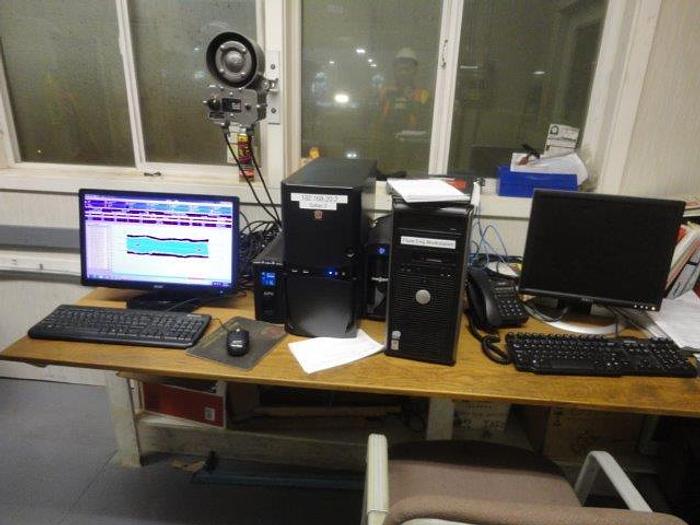

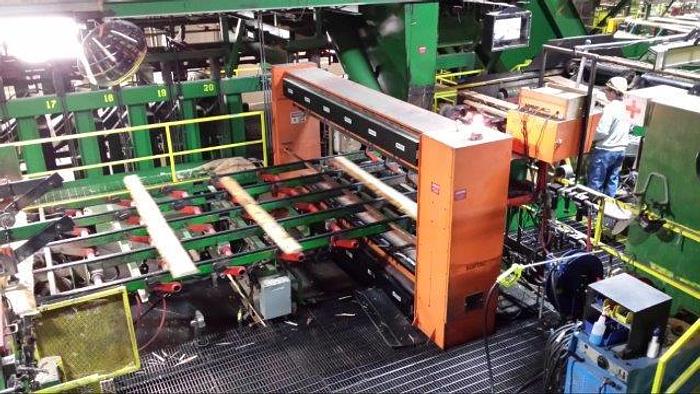

- Softac scanning and optimization system

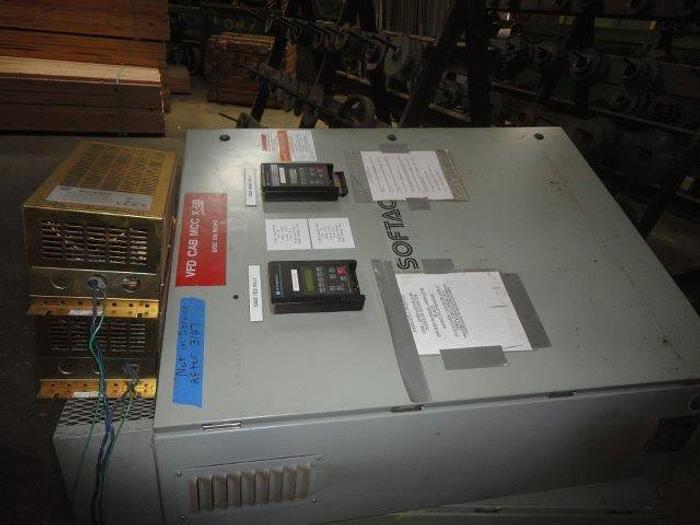

- Four (4) Allen Bradley 1336 VFD drives

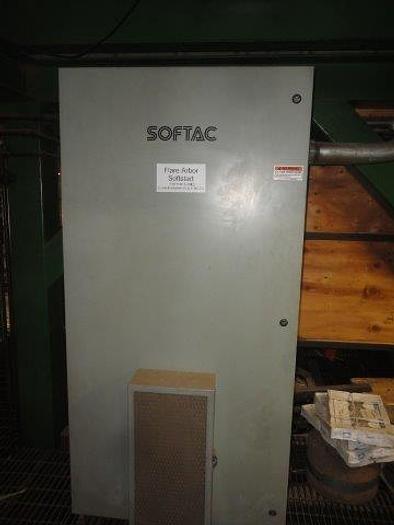

- One (1) 300 Hp soft start

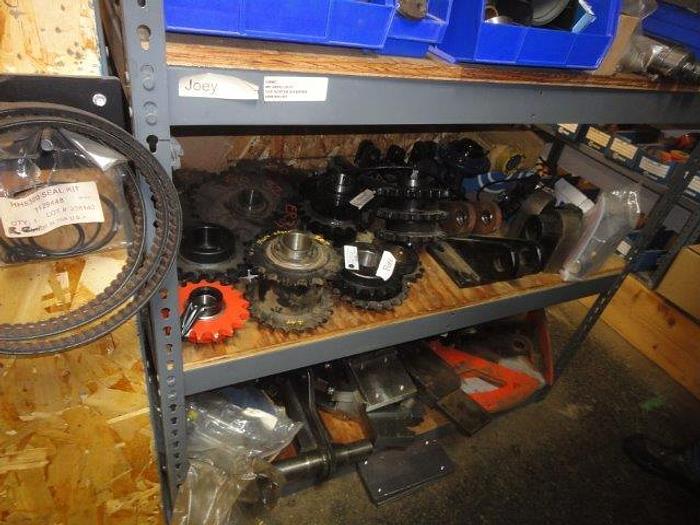

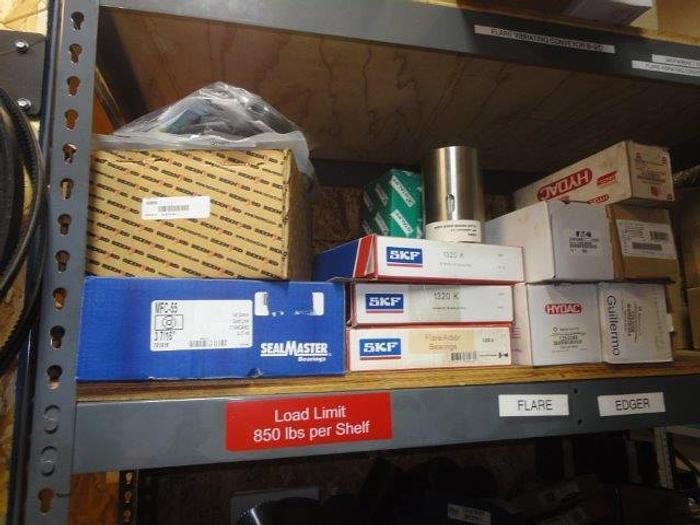

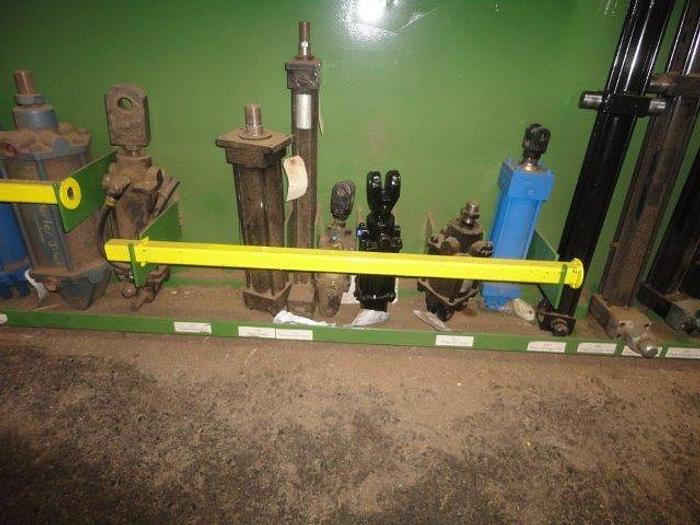

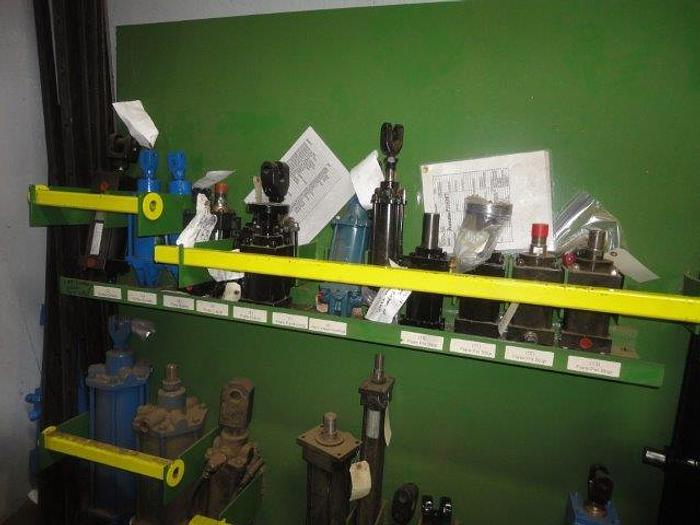

- Miscellaneous spare parts
- No setworks HPU
- No Babbitt pot or saw guide resurfacer
- Still installed and operating (schedule for removal April 2015)
Specifications
Year | 2000 |
Condition | Used |
Stock Number | 5841 |
