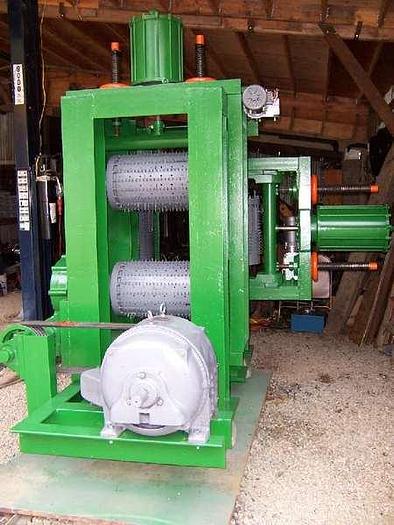

P-H Incisor

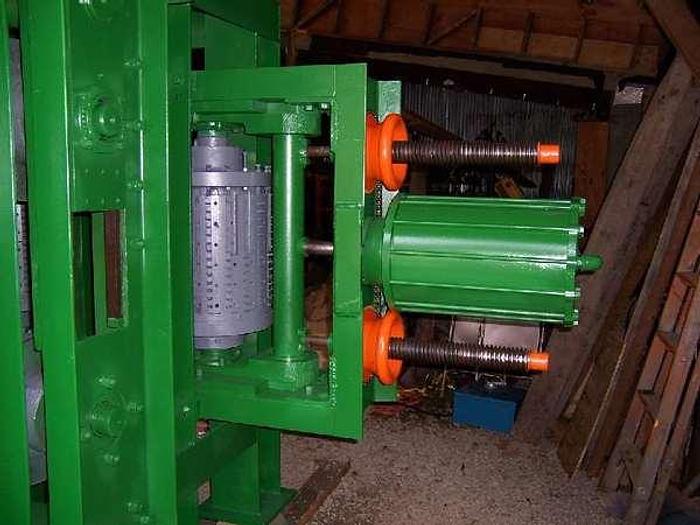

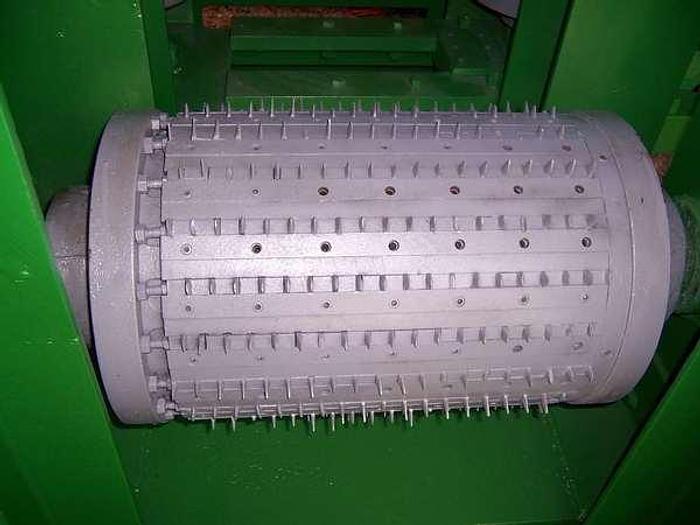

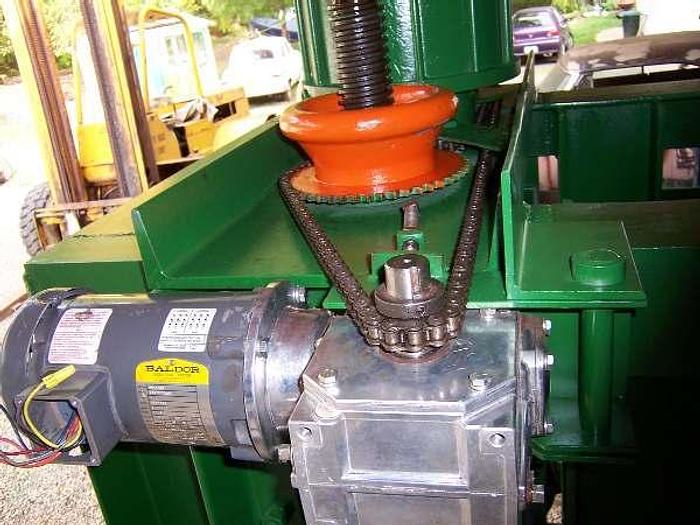

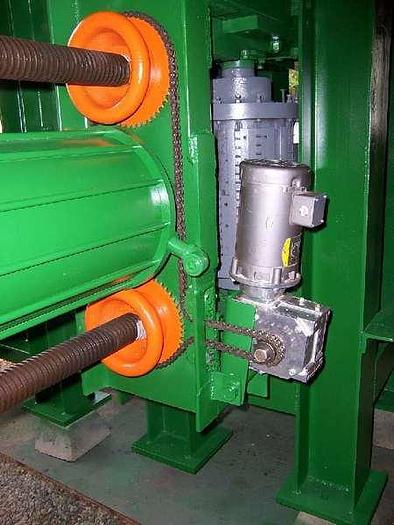

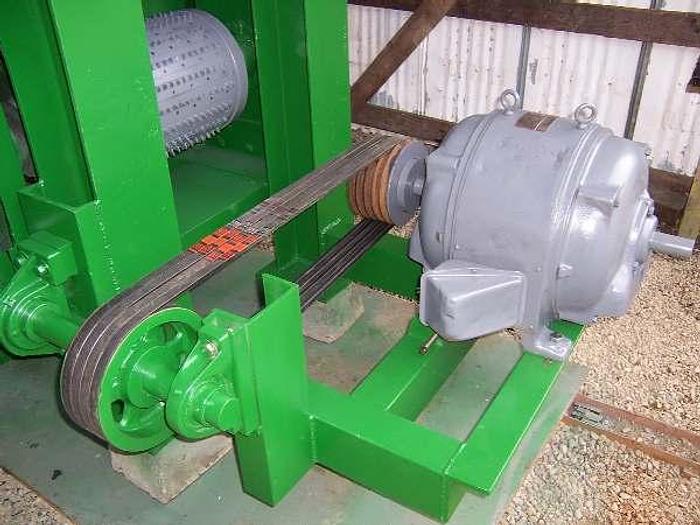

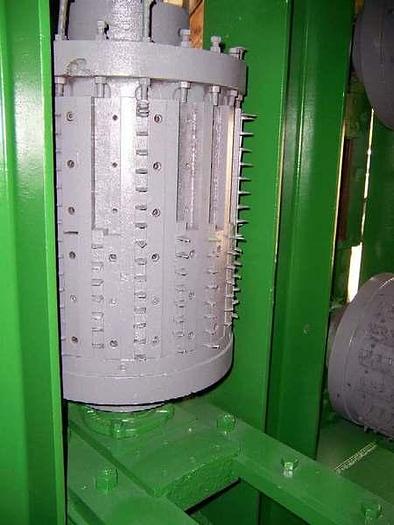

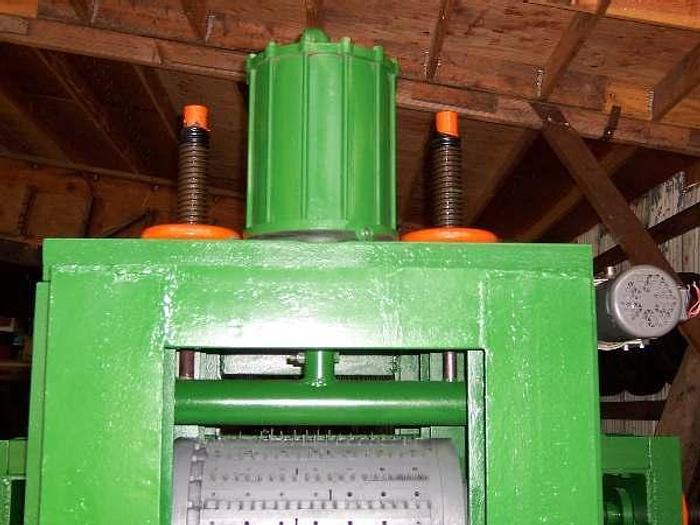

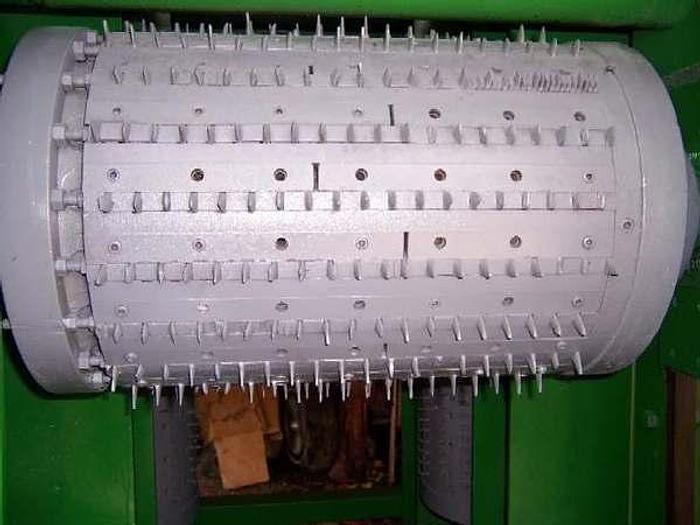

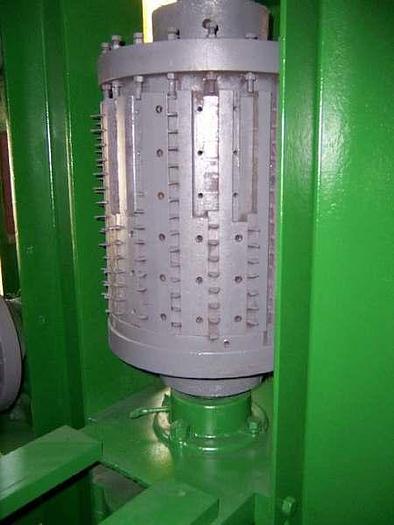

- Will incise up to 14" thick by 18" wide - Will pass up to 17" thick by 21" wide - Greenlee type incisor teeth - 1,360 total - Heads - 4' circumference, 20 rows of teeth - Runs 144 FPM at 60 hertz - Feedworks drive motor - 25 HP, 1200 RPM, 480 volt double shaft - Feedworks - belt driven line shaft thru two right angle shaft mount drives - Weight - approx. 10,000 lbs. - Dimensions - 100" high x 100" wide x 108" long - Size adjustment - 1 HP, 3 phase electric powered right angle gear drives. - Pressure - 12" bore air cylinders set depth of penetration, protect against oversize stock - Feed - six legs with 1" plate with two holes each for large anchor bolts
