2014 VAB LINEAL GRADE OPTIMIZER

No longer available

2014 VAB LINEAL GRADE OPTIMIZER

Surrey, Canada

Description

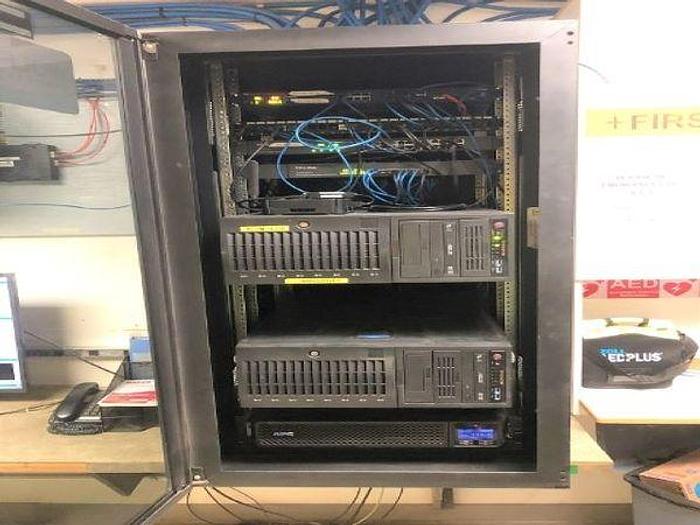

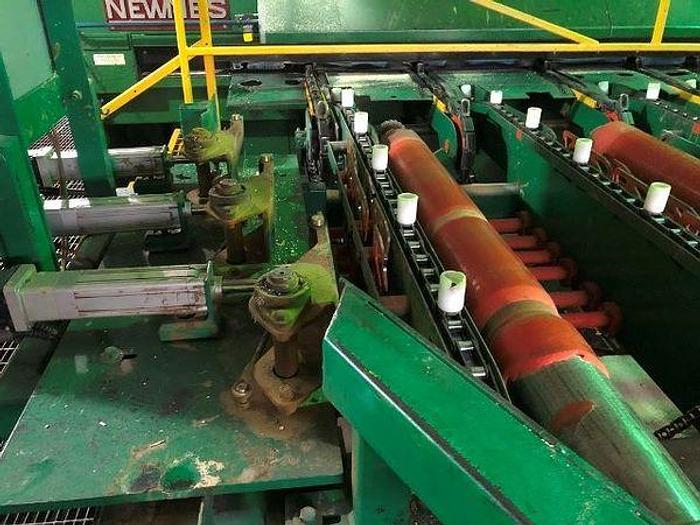

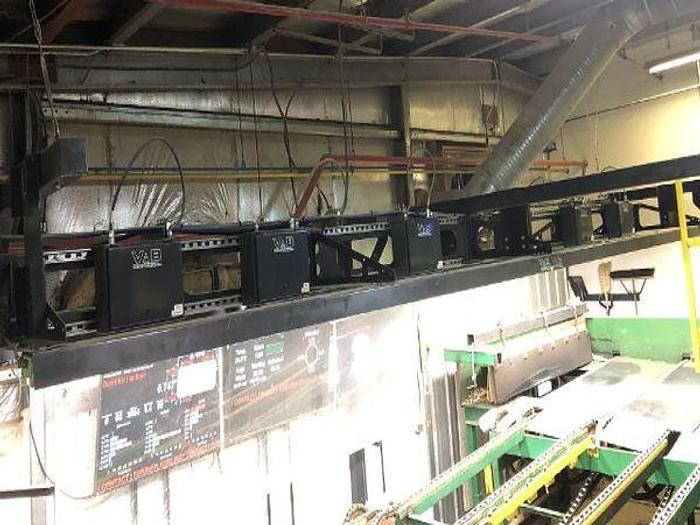

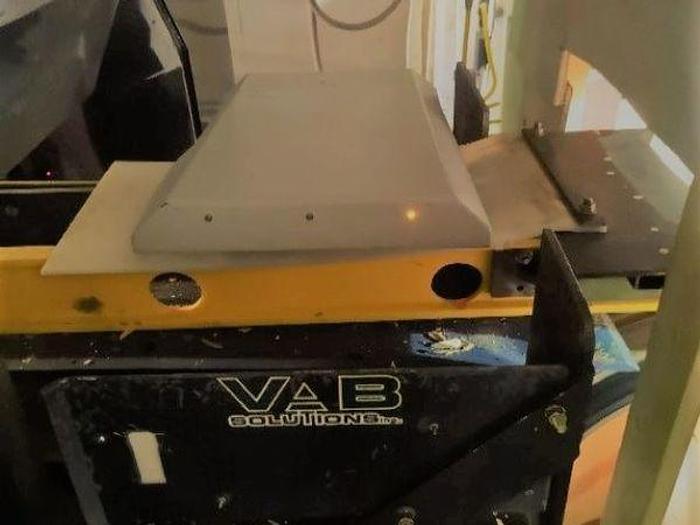

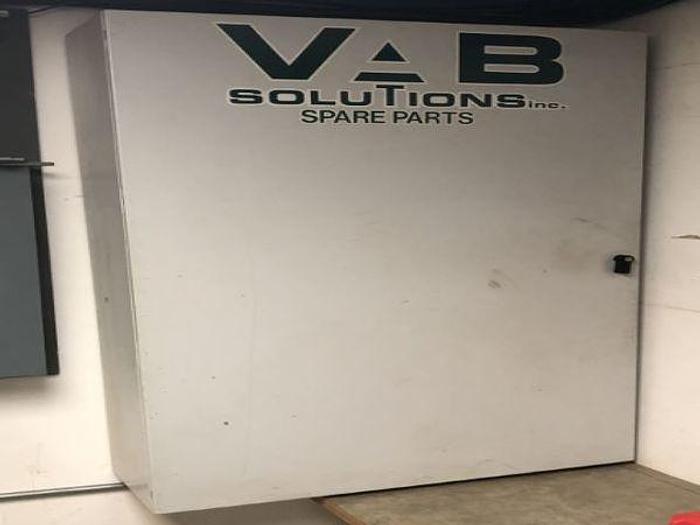

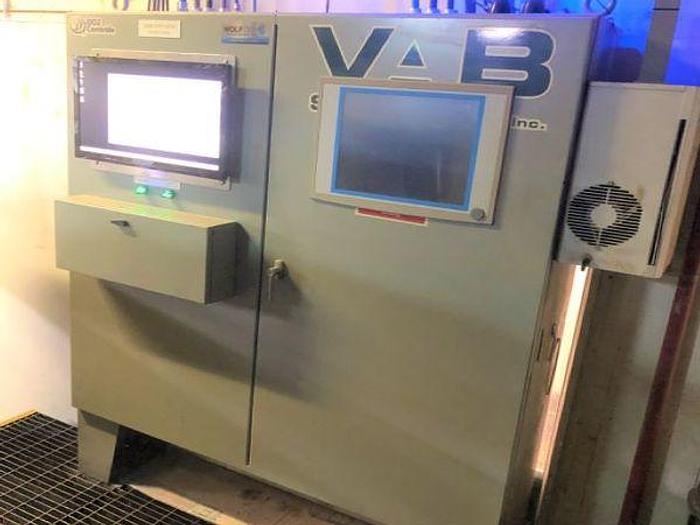

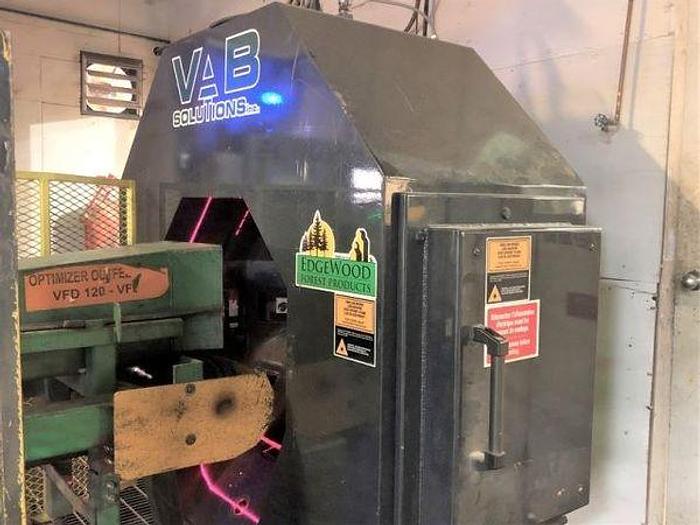

VAB LINEAL GRADE OPTIMIZER - Installed in 2014 (to be taken out of service May 2020) - FMI In-line Moisture Meter - 2013 VAB Lineal Planermill Lumber Grading System c/w Tracheid Module - readings every 1/4" at speeds up to 2000 FPM (Readings every 1/8" up to 1000 FPM) - accuracy +/- 0.005" in thickness, +/- 0.005" in width and +/- 0.060" in length - maximum and equivalent skip +/- 0.005" - maximum and equivalent wane +/- 0.015" - holes and surface defect +/- 0.015" - warp, twist, bow and crook +/- 0.025" - knots and spike knots - grain deviation and distoration - Splits and shake - white speck and honeycomb - VAB Scanning/Senor package - VAB Optimization computer hardware software package - VAB Transverse Warp module c/w four (4) cameras and twelve (12) lasers - 2016 VAB Board Tracker/Board ID Systems consisting of six (6) cameas mounted inside enclosures - DO2 Three (3) stage RH Fence c/w (3) 4" stroke Electric cylinders c/w kinetics 6500 servo drives (lugged transfer chain NOT included) - Spare parts - Dismantled and loaded onto trucks

Specifications

Year2014
ConditionUsed
Stock Number6255
