48" x 60" GRIZZLY HOG

48" x 60" GRIZZLY HOG

Contact us for price

Location:British Columbia, Canada

orCall (604) 575-0046

Description

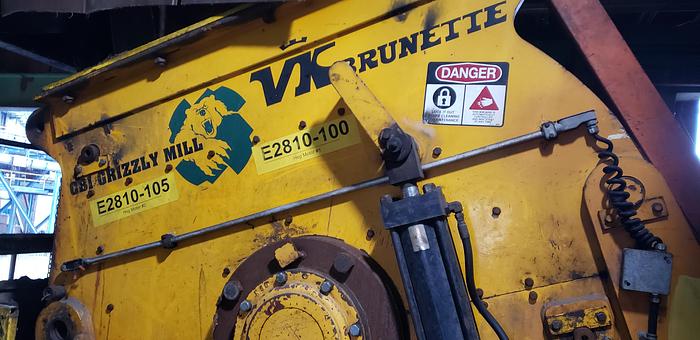

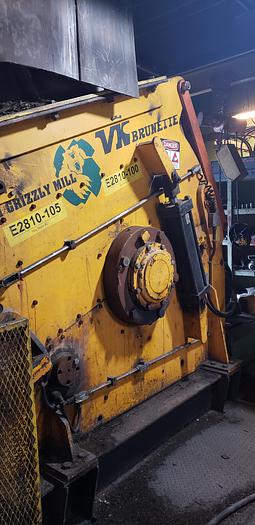

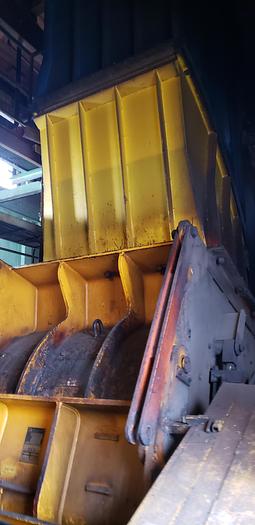

GRIZZLY 4860 HOG

- Clamshell opening frame c/w bolt on 5/8' thick liner plates

- High inertia rotor 48" diameter x 60" long

- Four (4) row of fixed striker bars (new)

- Arbor - 6-15/16" diameter, 4140 HTSR

- Arbor bearings, SKF

- Bottom grate

- 2" Shear pins, anvil door/grate

- Pivot pins and pushings

- 2" Thick Grate Liner

- Electrical safety interlocks

- 500HP @ 1200 RPM, drive motor c/w belt drives and drive base (NOT INCLUDED)

- Estimated weight 40,000 lbs

- Fair condition (needs work prior to installation)

- Dismantled and ready to load

Specifications

ManufacturerCBI/VKB
Model4860
Year1999
ConditionUsed
Stock Number6625
