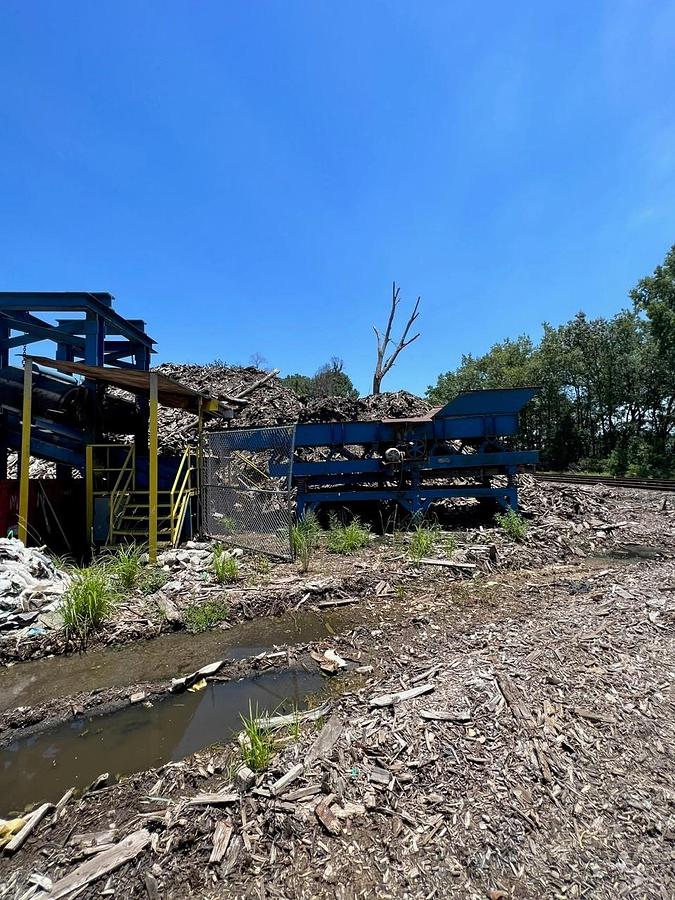

WEST SALEM MACHINERY 5472BH HORIZONTAL GRINDER SYSTEM

WEST SALEM MACHINERY HORIZONTAL  GRINDER SYSTEM

-60” Millpower Shaker conveyor/finger screen – manual attached, deck removed, used to meter flow of material fed by operator, and reduce bed depth to make cross belt and head pulley magnets most efficient.

-60” Eriez cross belt electro magnet.

-Eriez 10K42 kW Silicon Rectifier incorporating (manual attached):

*   To convert 480 volt, 60 Hz, 3 phase AC to230 volt DC

*   10,000 watts output

*   Normal convection cooled, full wave bridge circuit

*   Fused AC switch

*   Nema 3r Enclosure

-Eries beefy magnet stand to support magnet and chain fall.

-60” x 28’6” Slider Bed (Heavy Duty Feeder Type Conveyor) with 8’ section of stainless steel non-magnetic for Eriez cross belt magnet to perform at peak

-20”x60” Dodge magnetic head pulley – installed to double up on magnets on conveyor, prior to material entering WSM grinder drag chain feed.

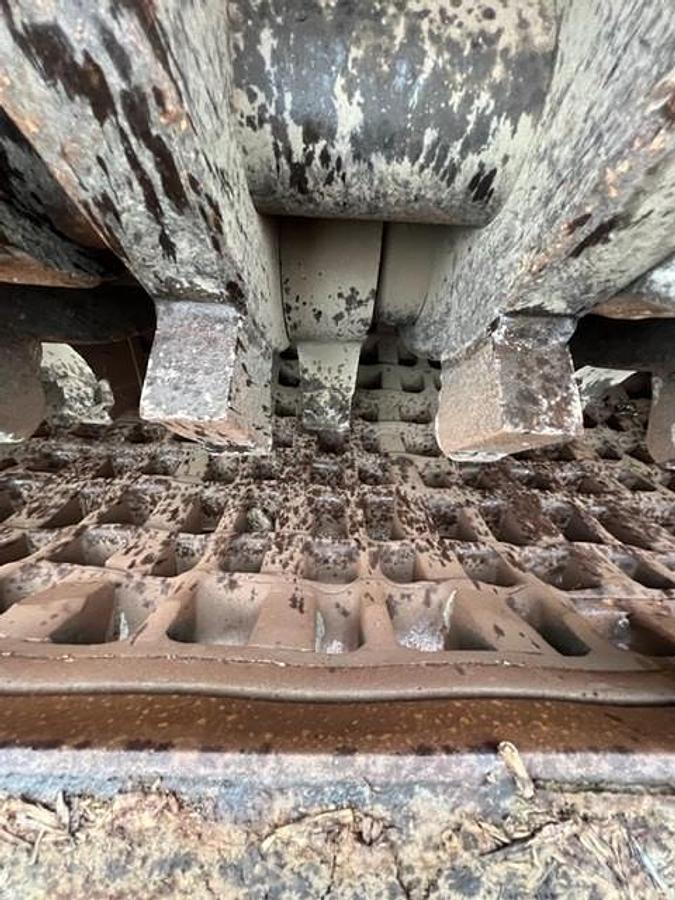

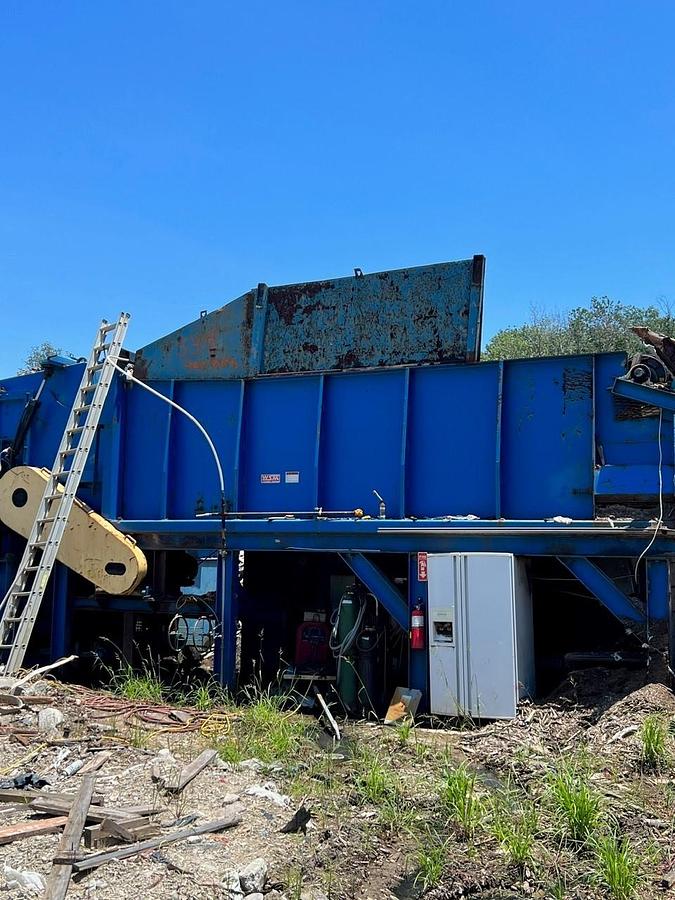

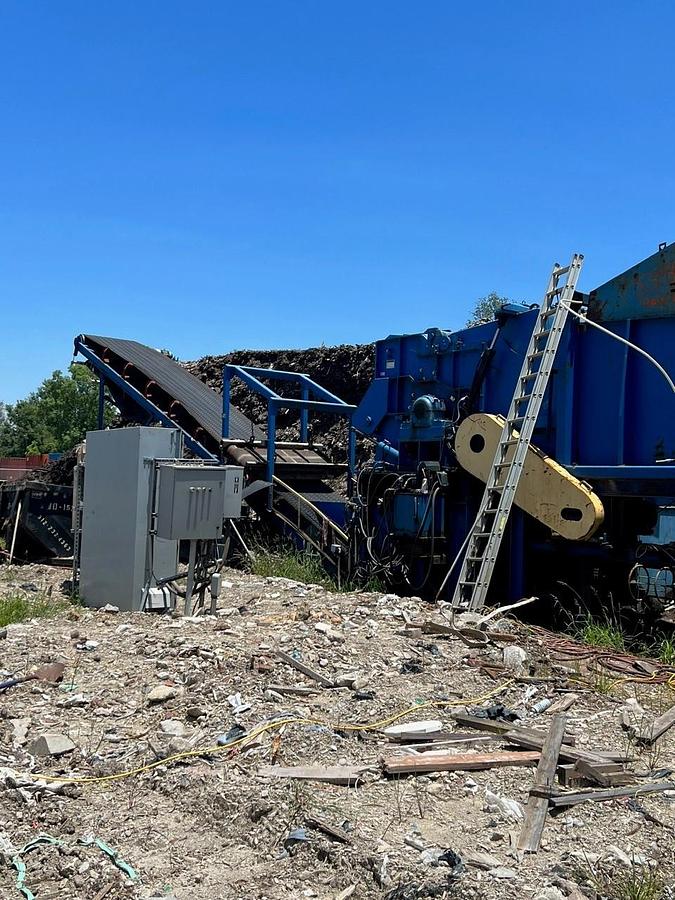

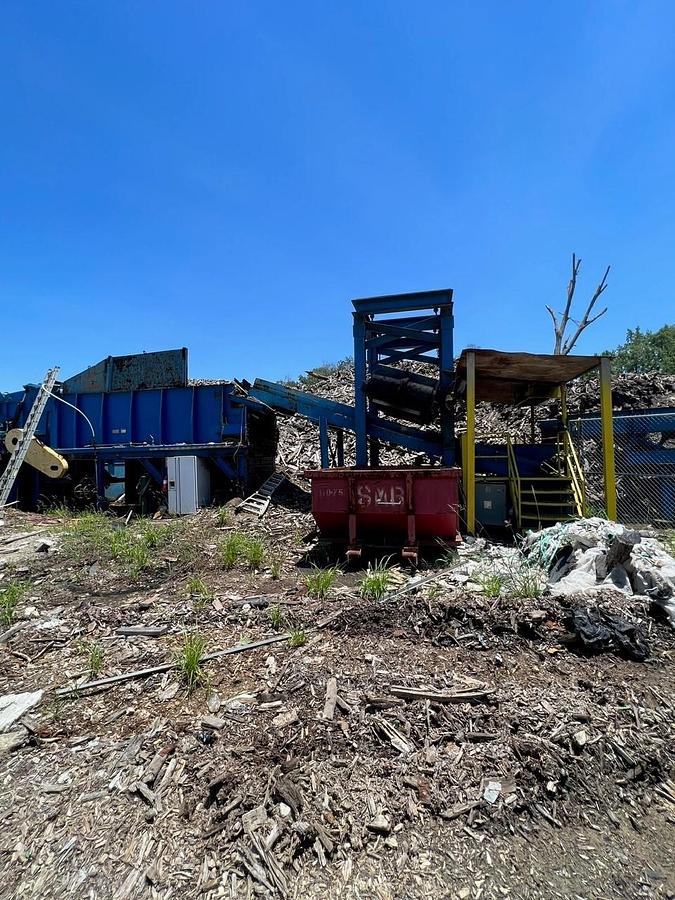

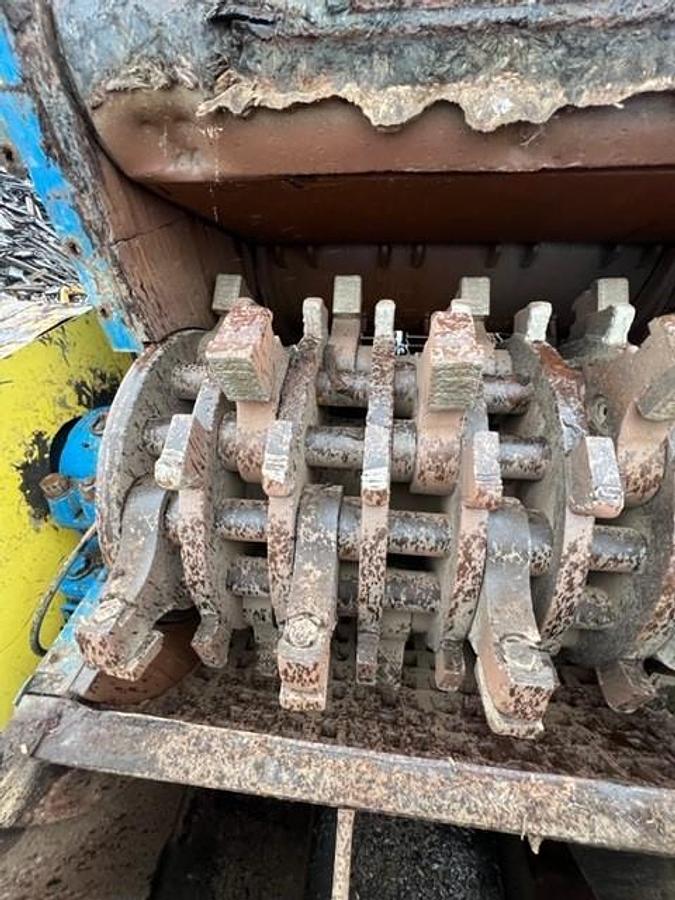

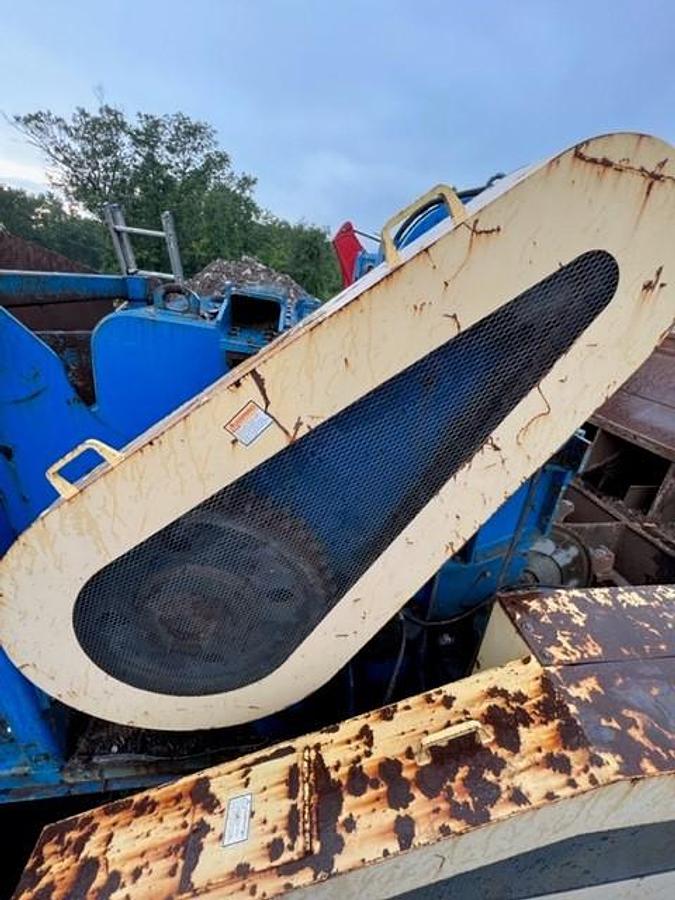

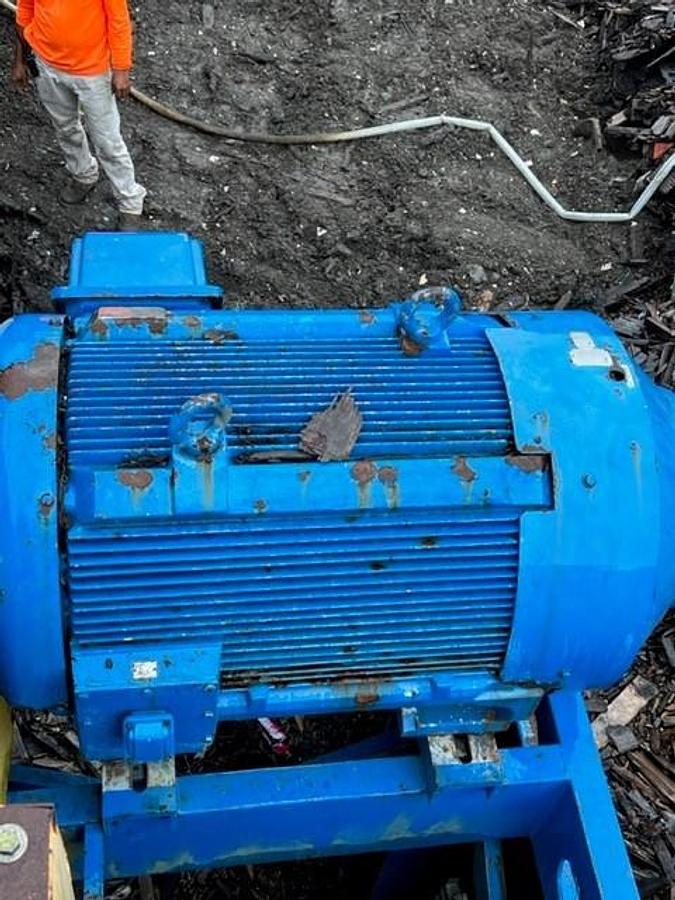

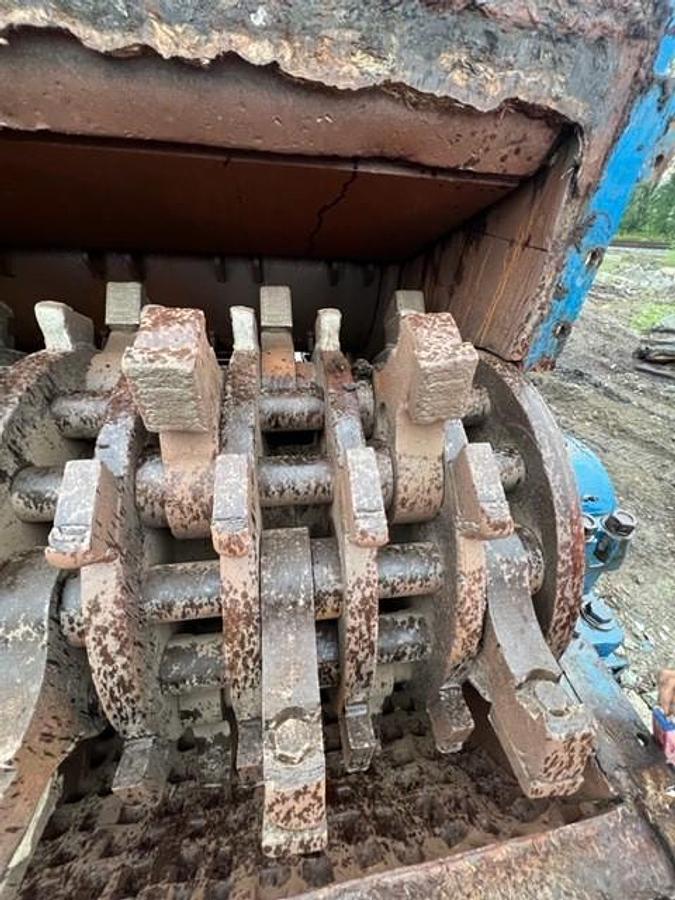

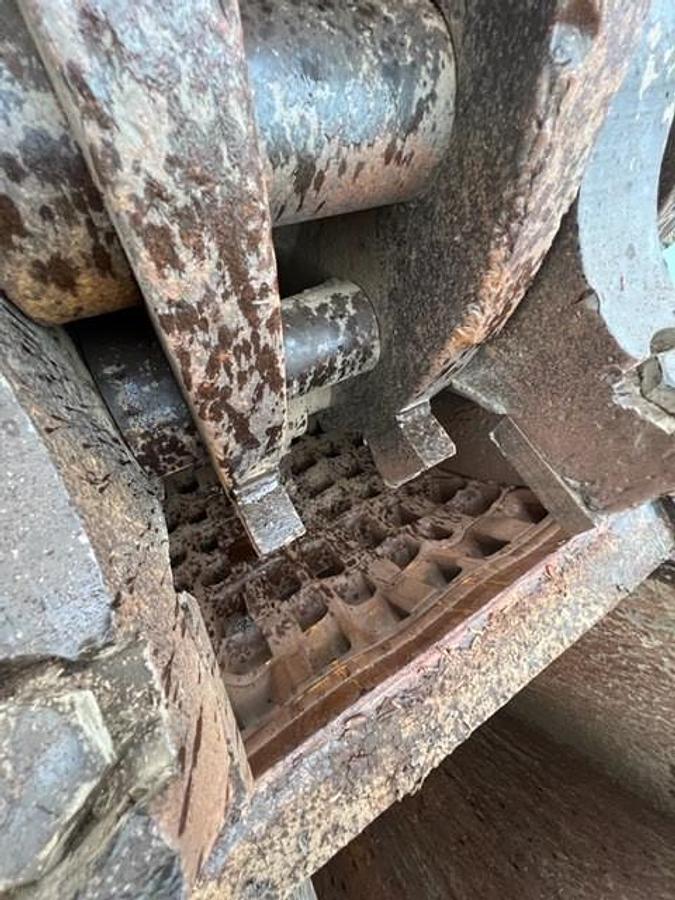

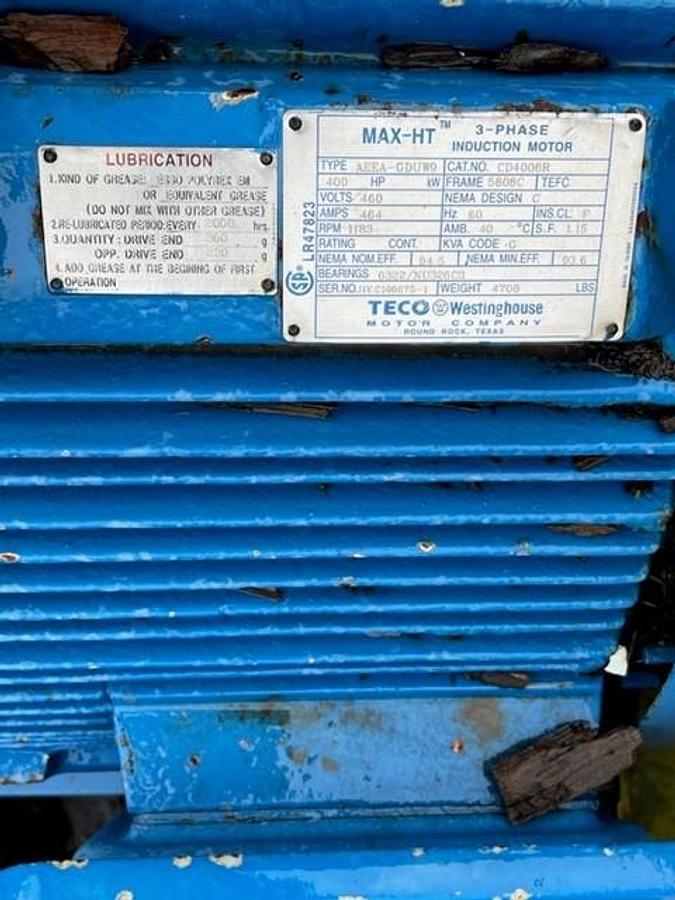

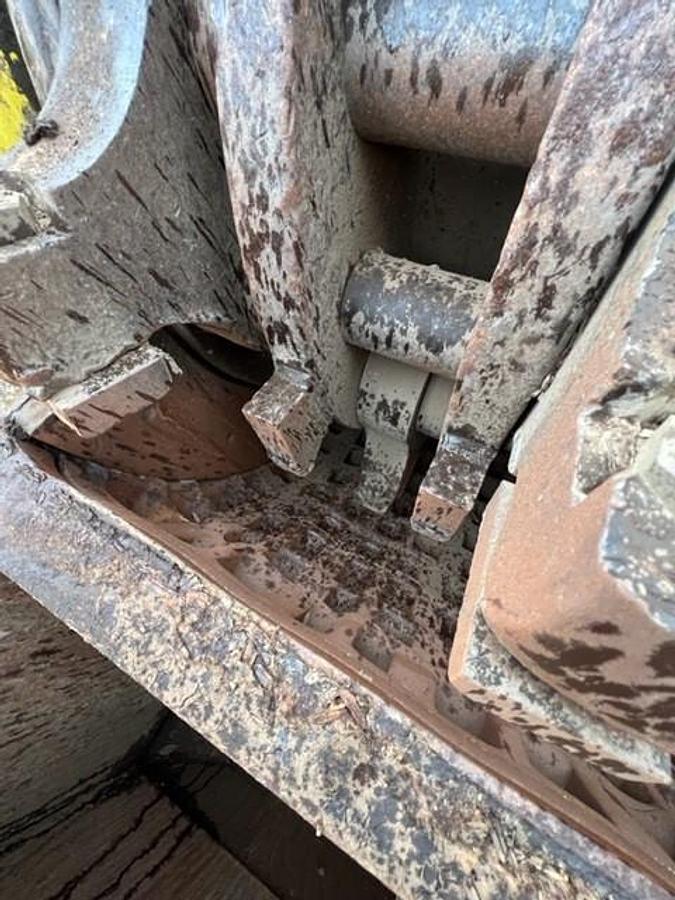

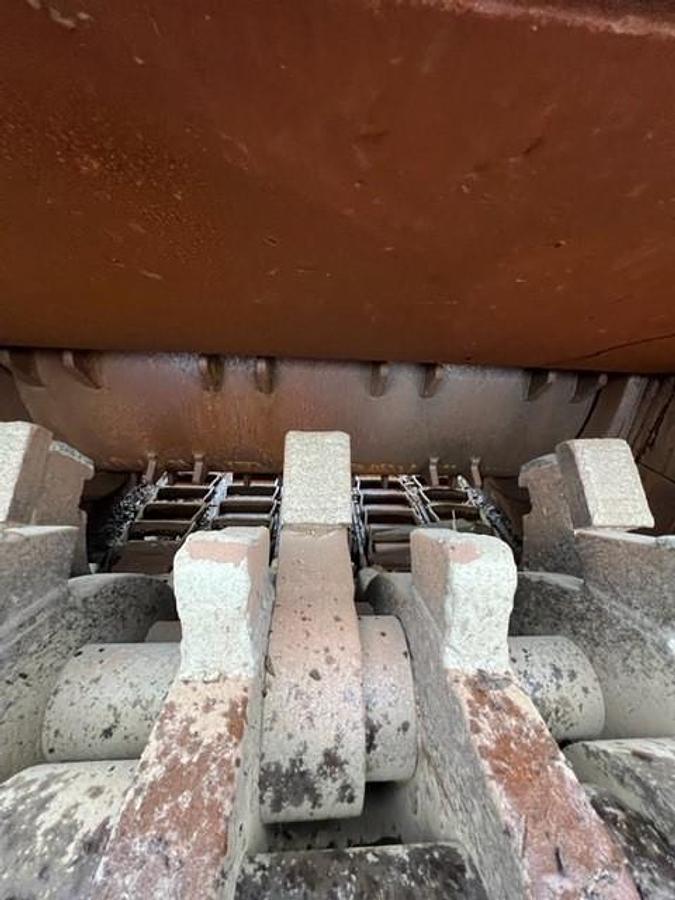

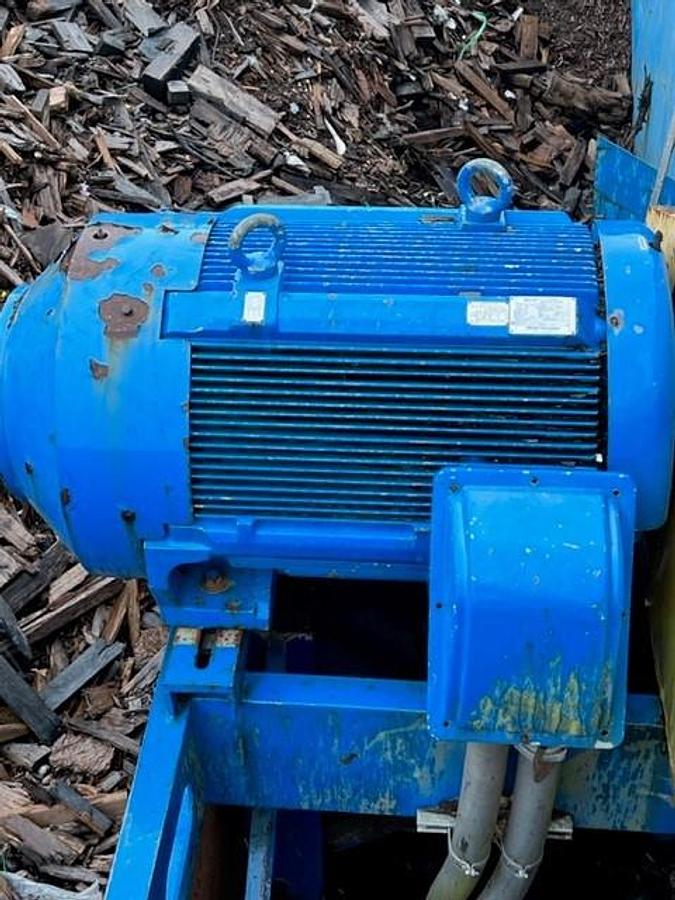

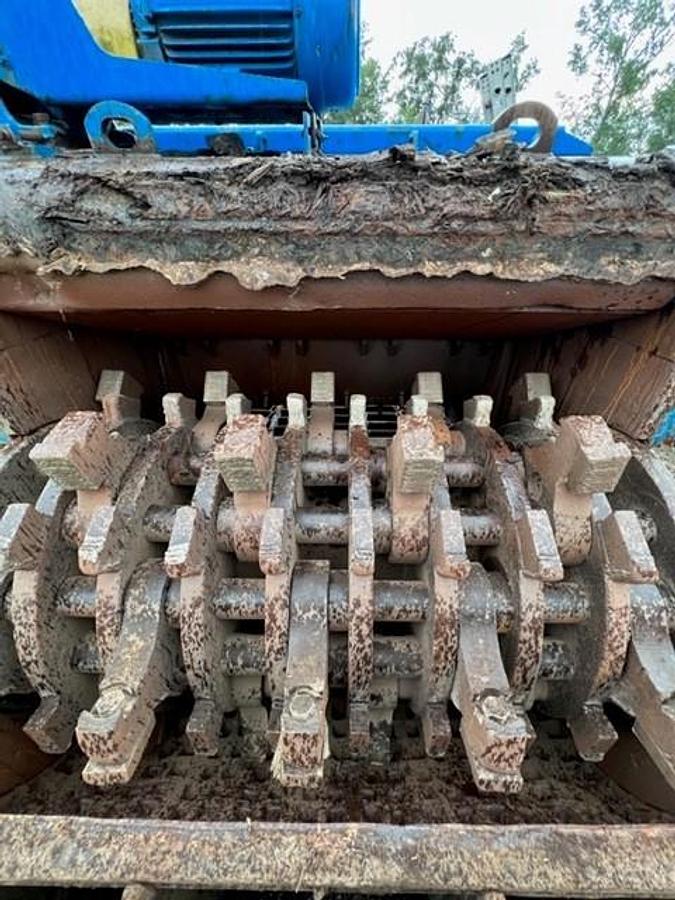

Downstream from this is the WSM 5472bh Titan horizontal grinder – manual attached.  Schematics and wiring diagram can be supplied as well. (tw0 (2) 400 HP 460/3/60 motors)

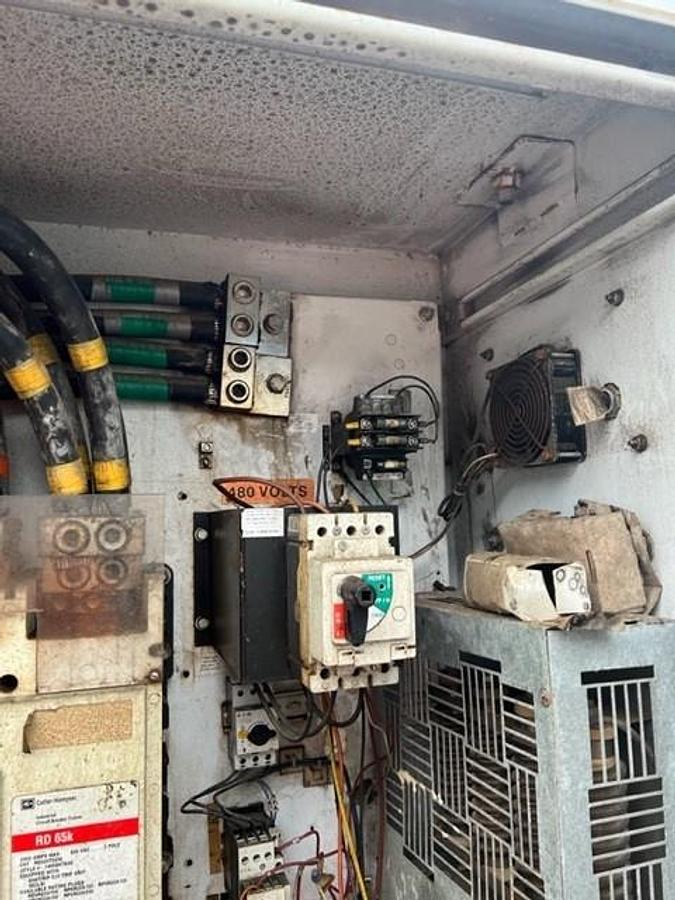

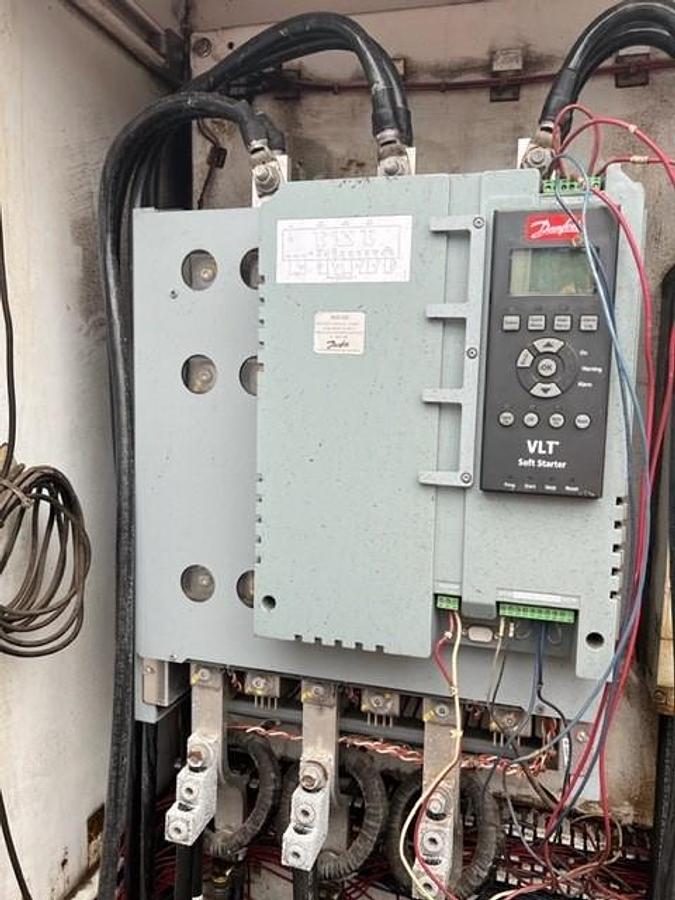

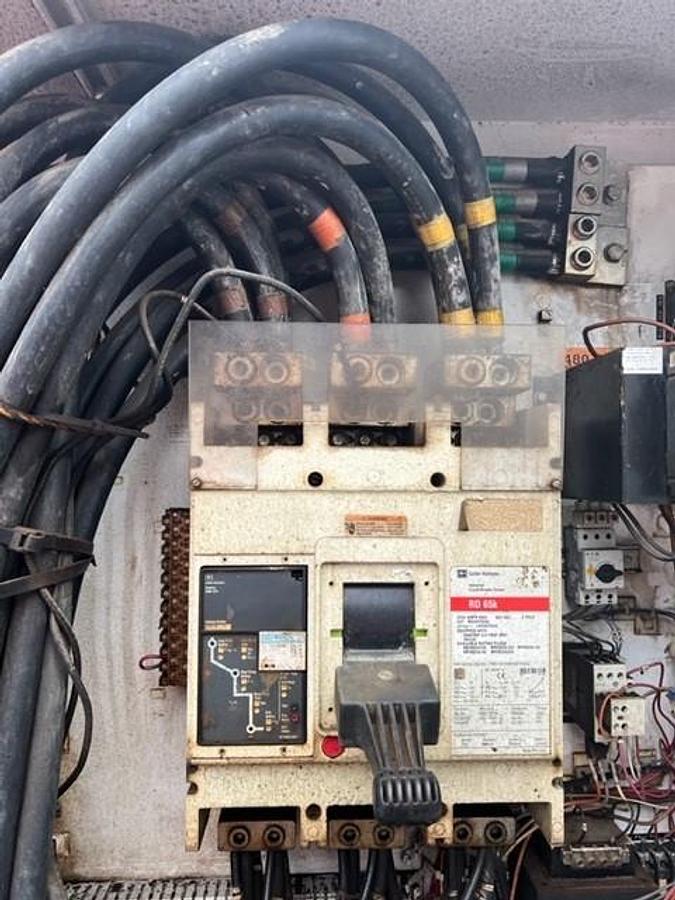

WSM also supplied the chip discharge conveyor and magnetic head pulley and electrical panel with touch screen (by Emerson).
