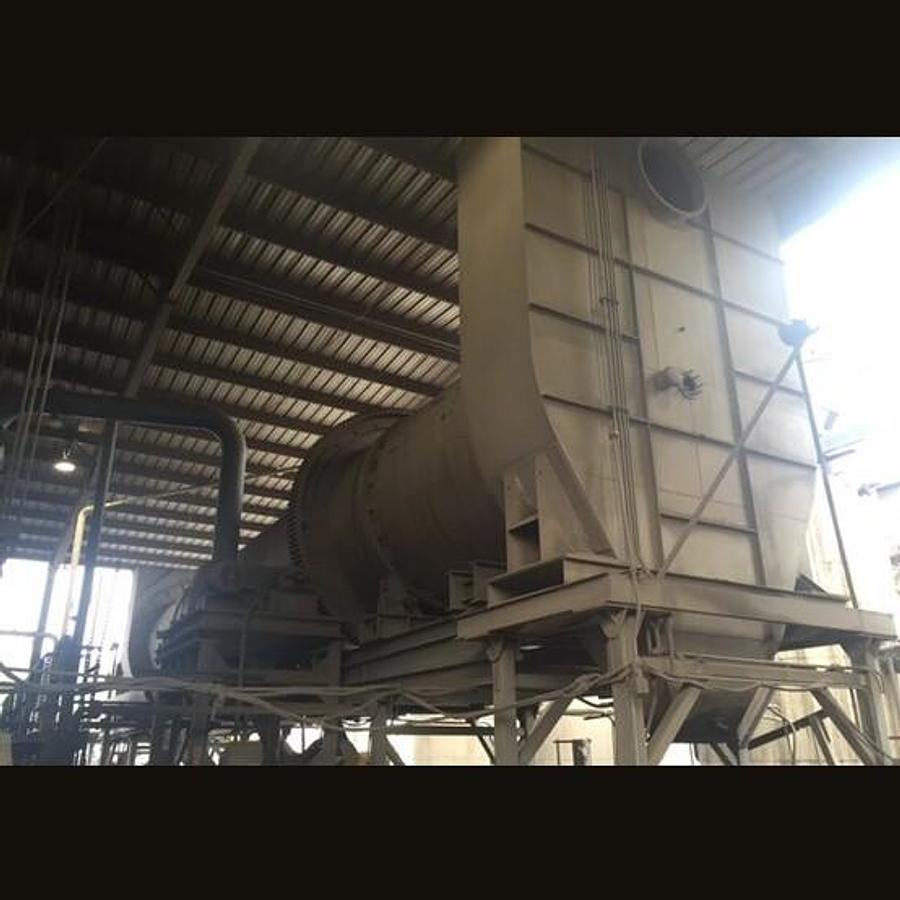

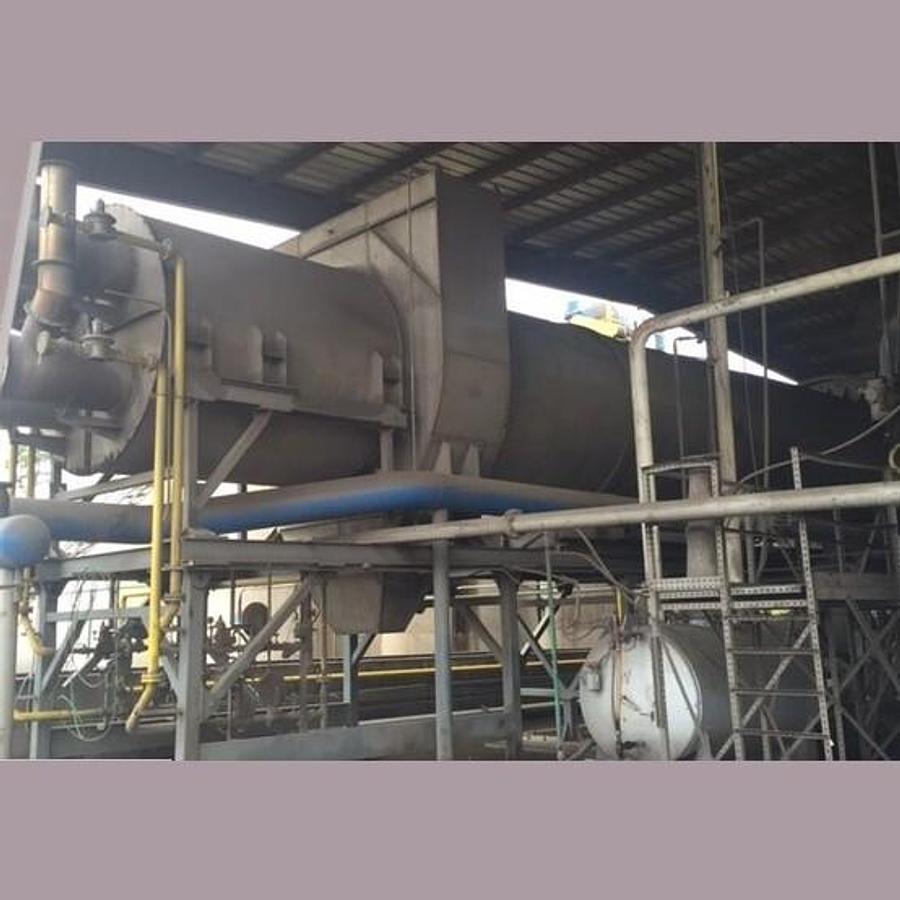

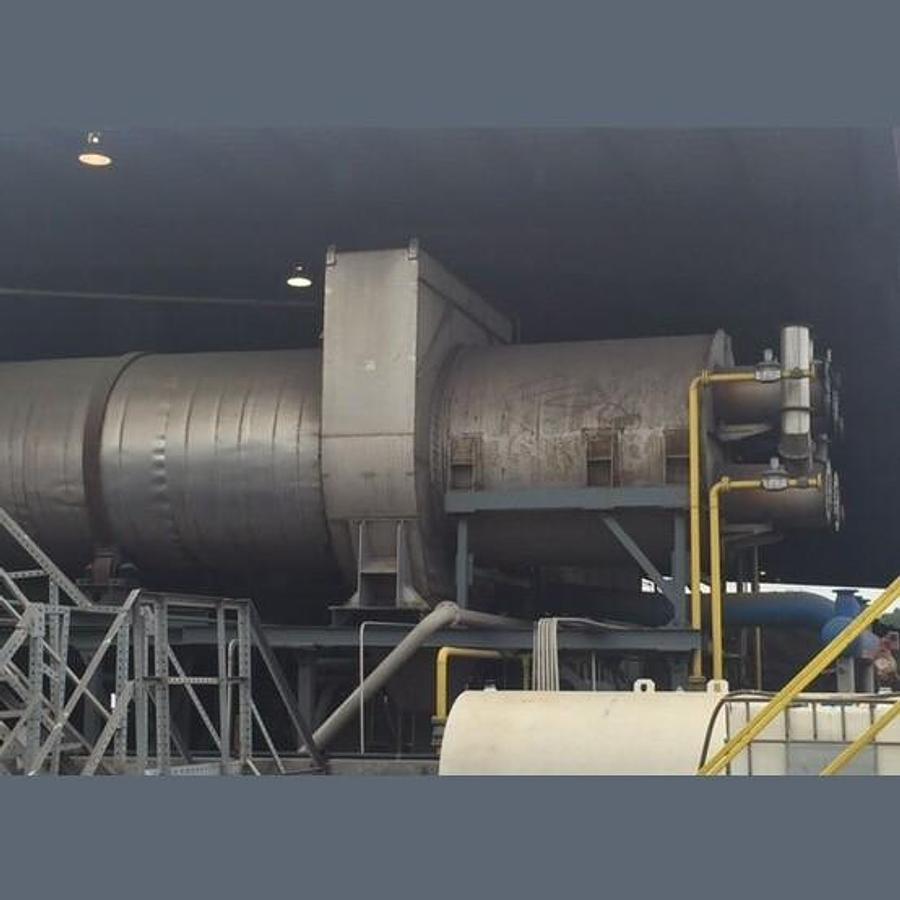

VULCAN 9FT X 60FT ROTARY DRUM DRYER

VULCAN 9FT X 60FT ROTARY DRUM DRYER

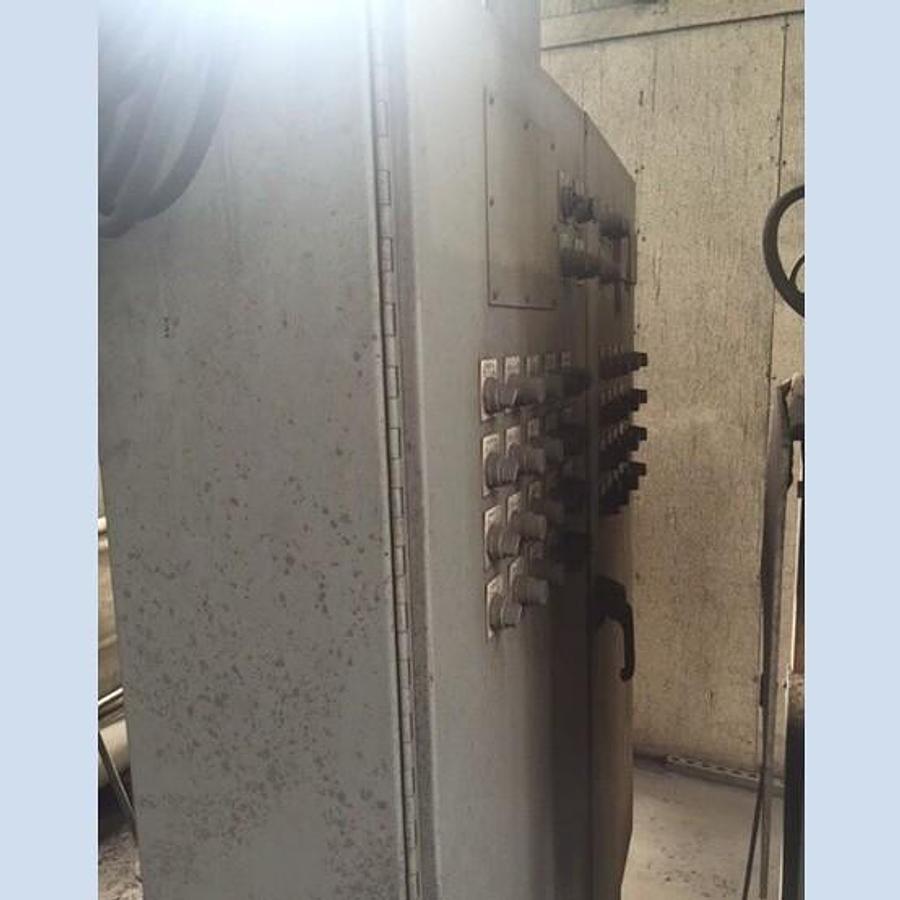

-Refurbished 2010 with New Controls & Instrumentation

-Limited Service after refurbishing due to project cancellation

-Used to dry Coal and Aggregate

-Burners Removed and In Storage.

-System Installed Under Cover Capacity: 200-300 TPH - Dependent on Process and Product Size

-Counter-Current, Fired at Discharge End - Can be Reversed by Adding Feed Section Between Combustion Chamber and Retort Shell Internals.

-Internal Lifters Length of Shell Construction:

-Carbon Steel Combustion

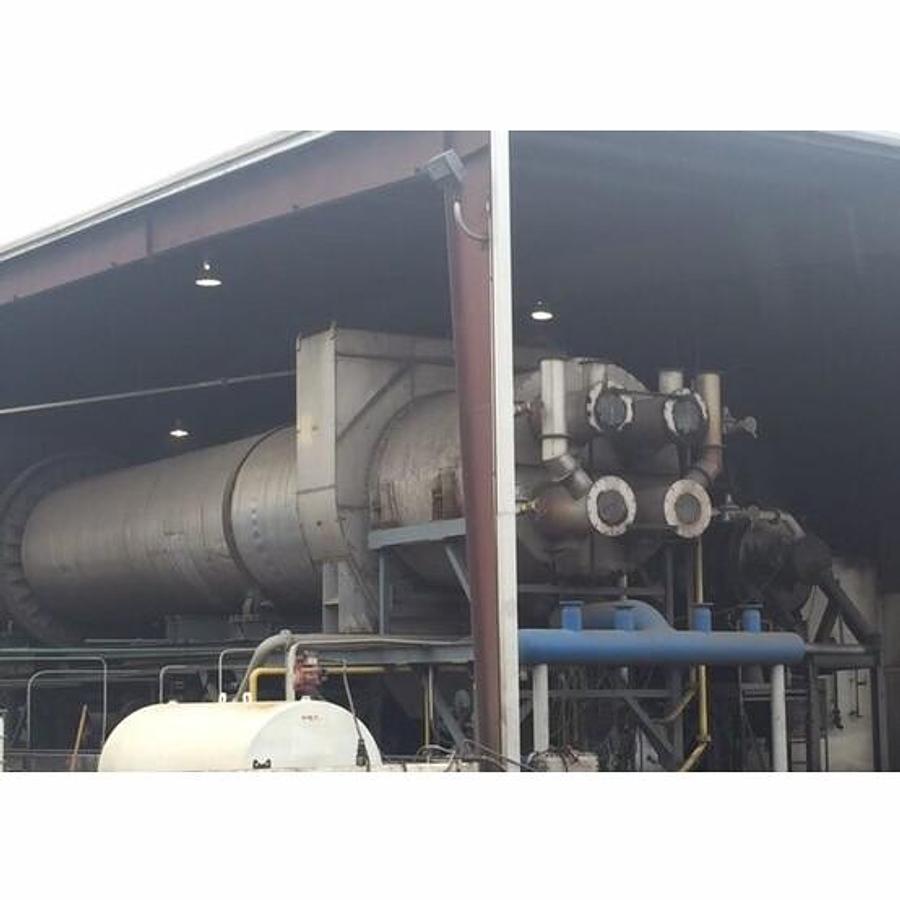

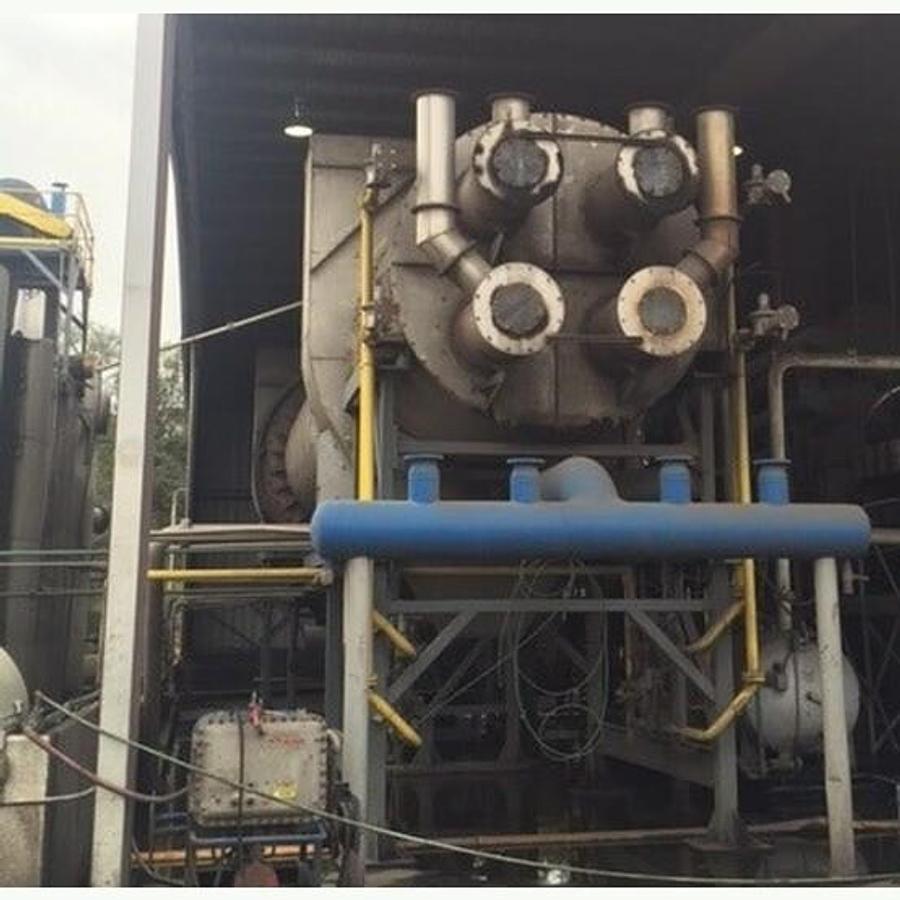

- Burner: Gas Fired, 40MM Btu/Hr. Total (4 Burners @ 10MM BTU/HR Ea.)

- Combustion Chamber and Blower - Temperature up to 650° F (Approx.)

-Driven By: 50HP Electric Motor Drive Via: Gear Reducer, Westinghouse, Via Bull Gear & Pinion Rotating Speed: Variable RPM Running Gear:

-Trunnions & Rollers - 30in Dia. x 13in Wide. 13ft 3in OD Bull Gear

-Shipping Dimensions: 13ft wide x 13ft high x 70ft long Weight: 70,000 Lbs. (Approx.)

-Location: Southern USA
