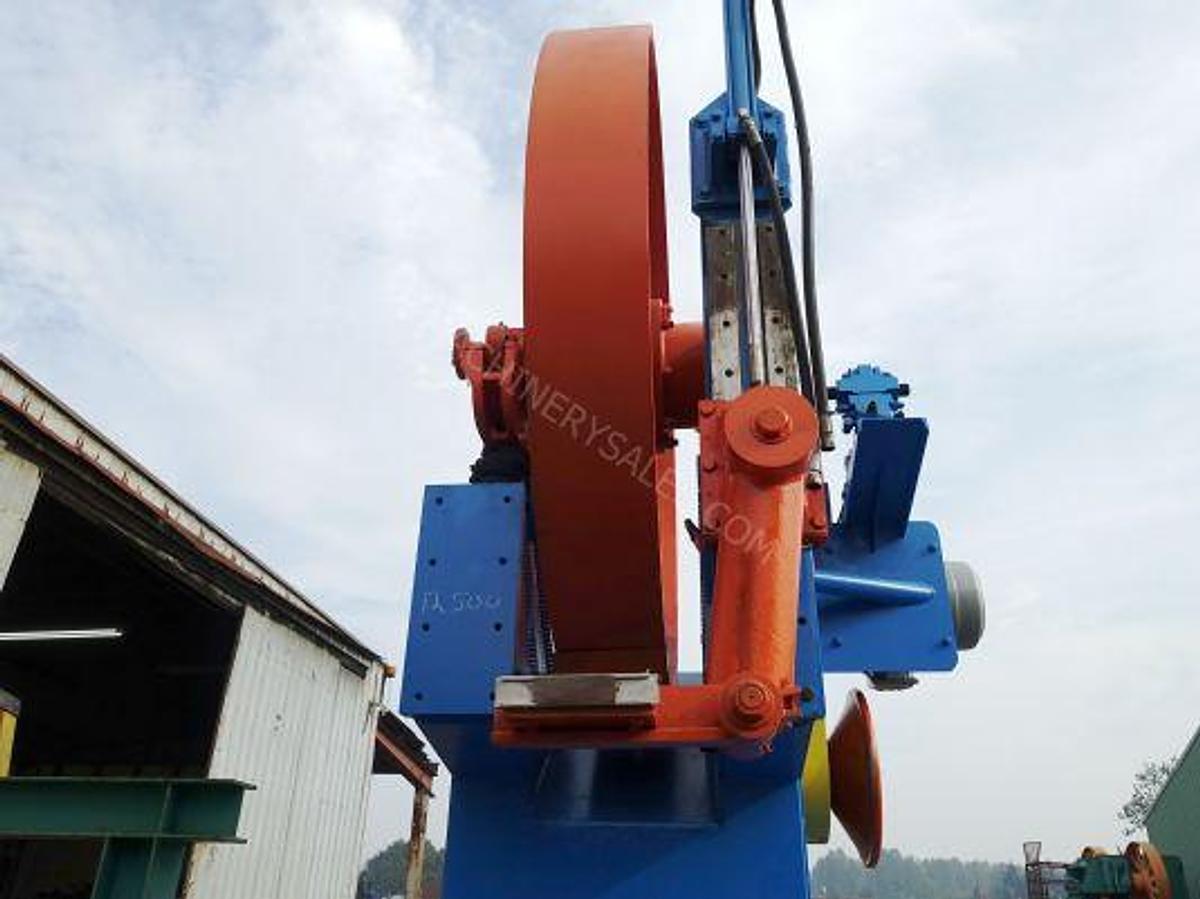

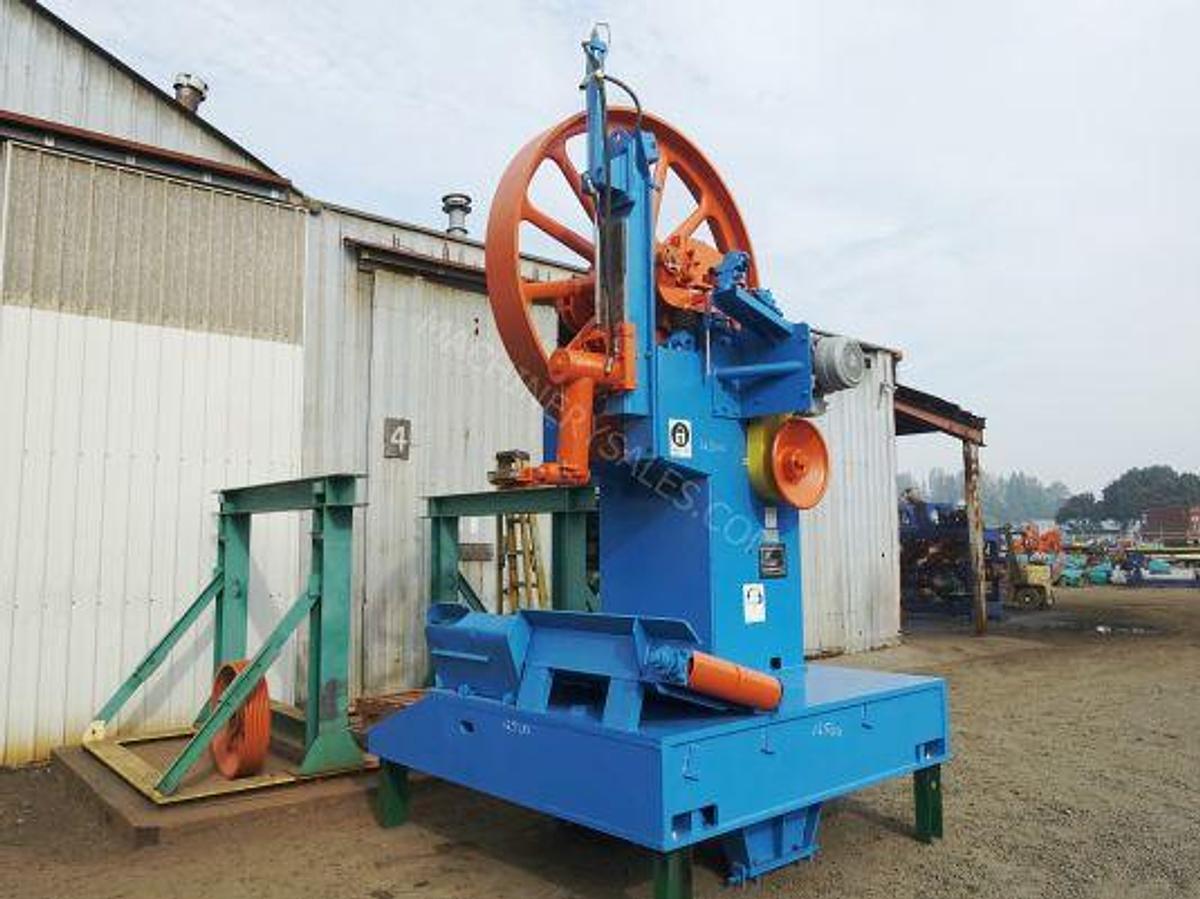

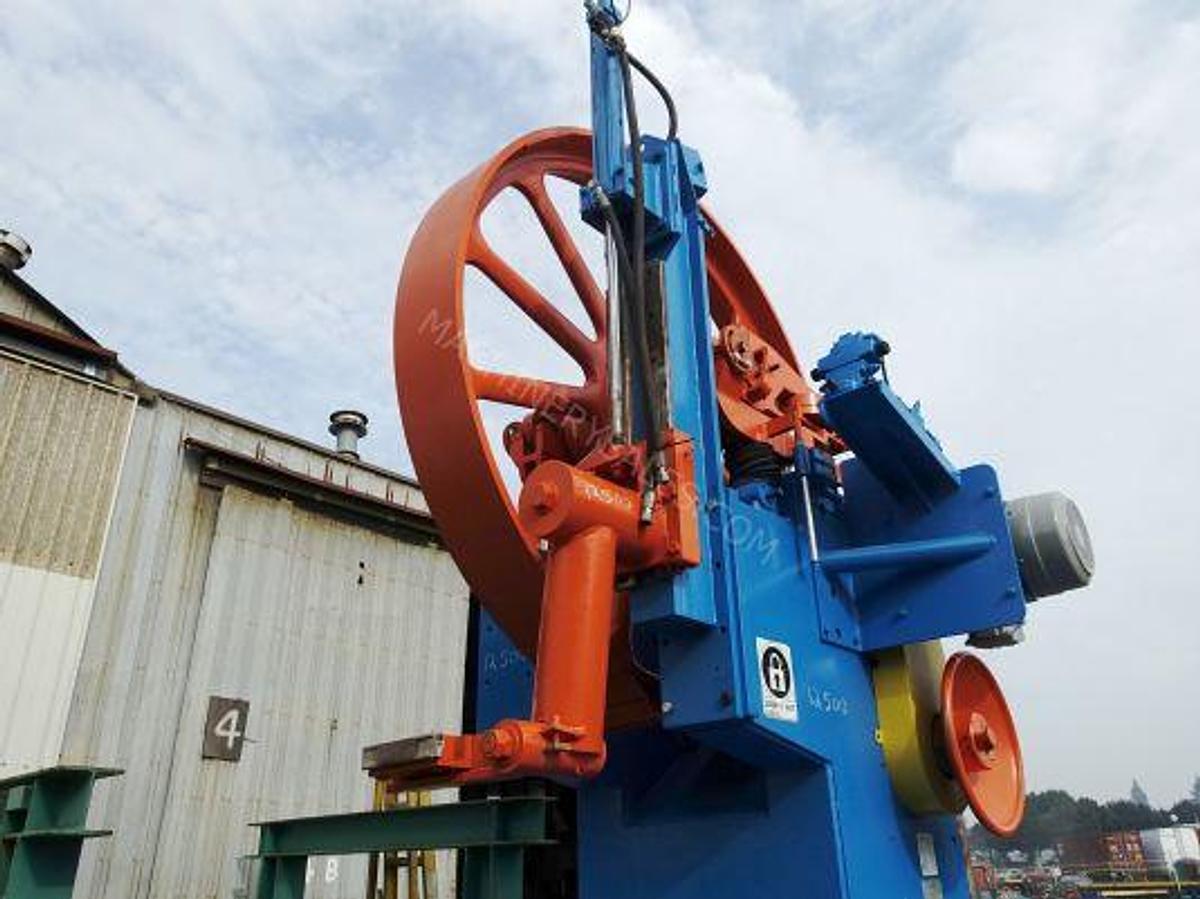

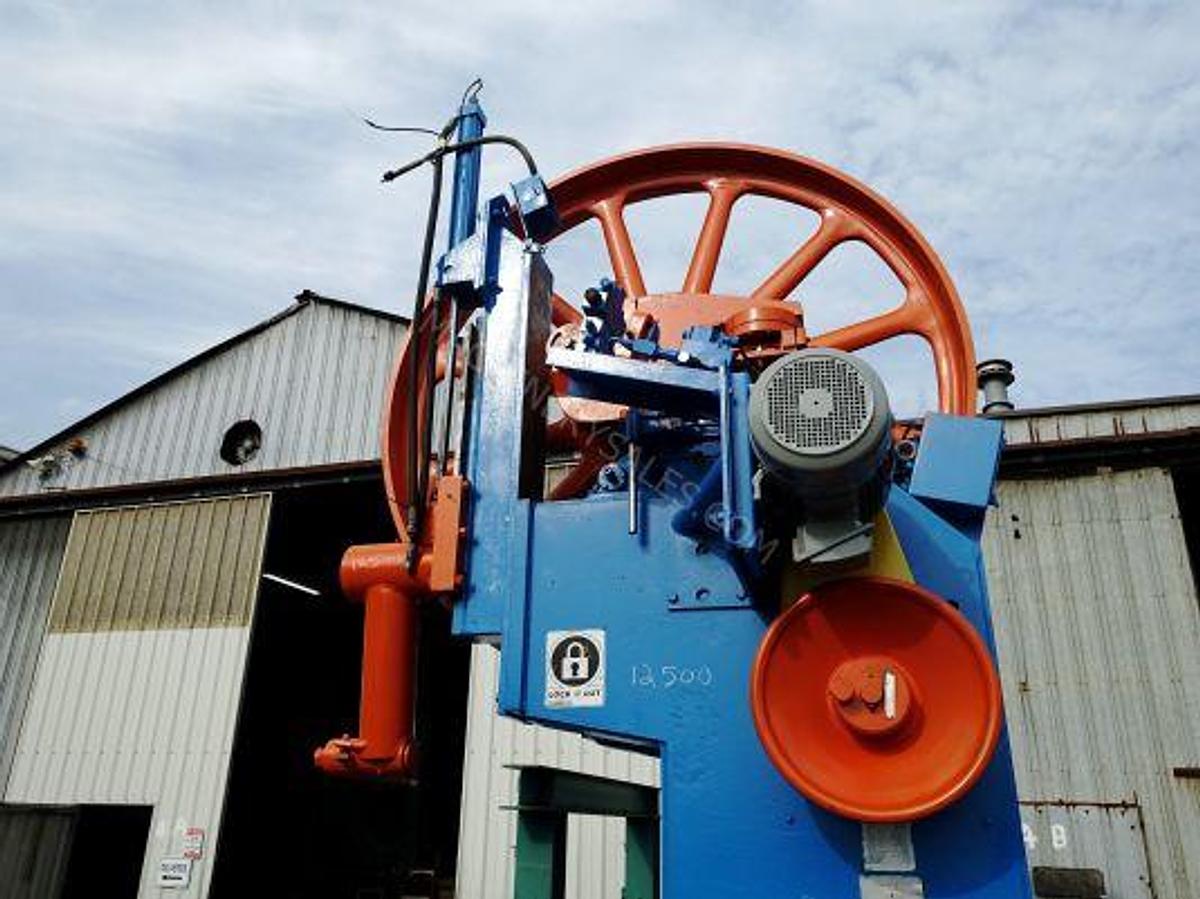

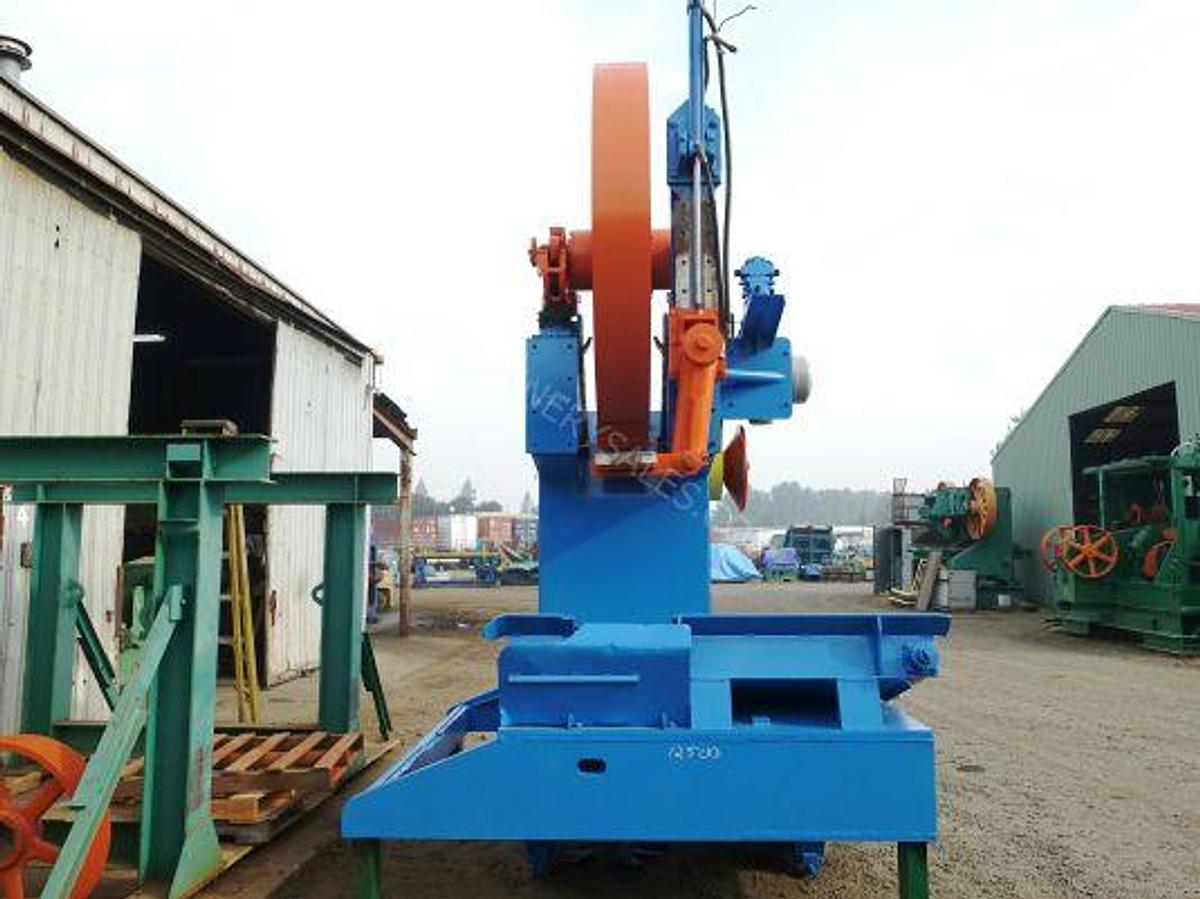

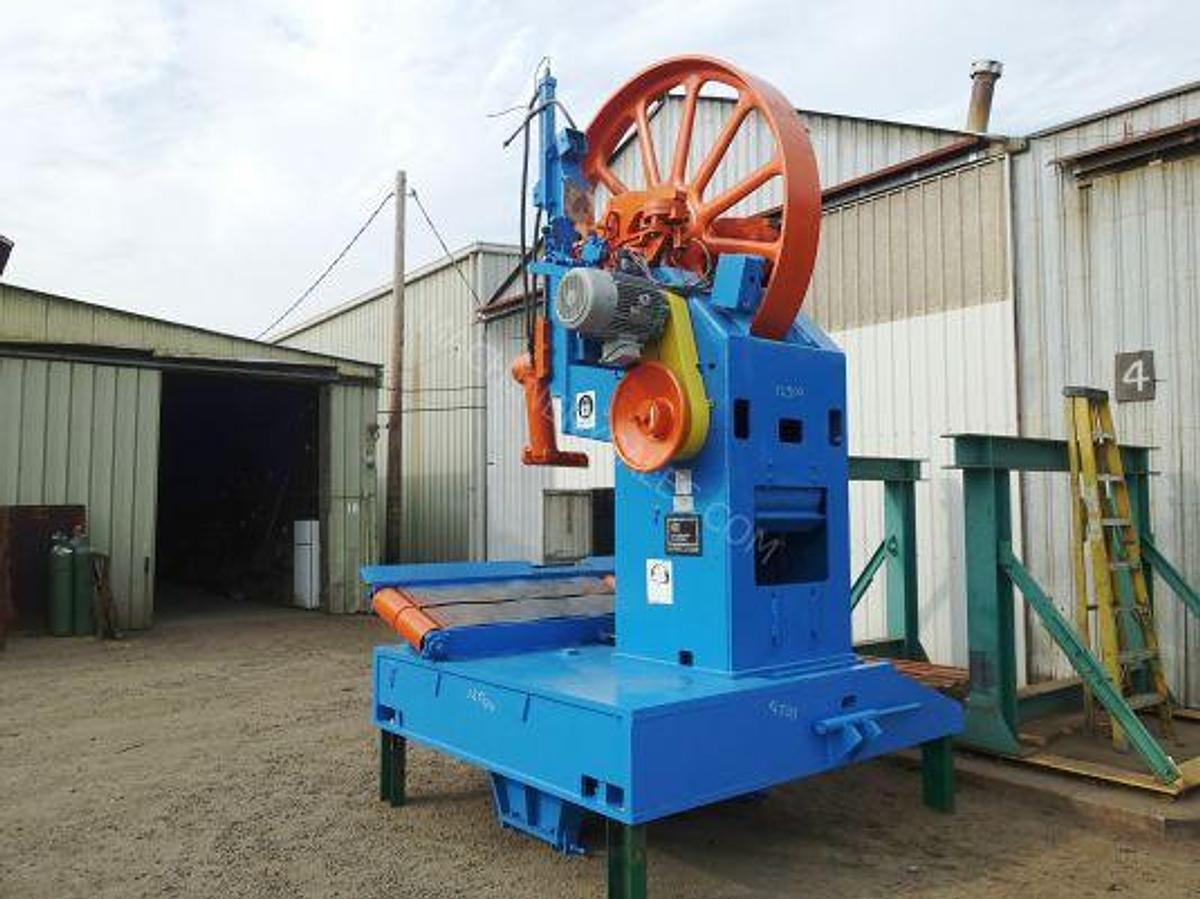

7 FT L&B HEADRIG BANDMILL (SLANT)

- Built in 1988 as a 17 degree slant configuration

- SN 8853

- Double Column High Air Strain Design (44,000 lb maximum design strain)

- RH installation (Bandmill on the left and Carriage on the right looking in the direction of flow)

- Standard column (minimum 10' - 4" and Maximum of 11' - 4" Wheel centers)

- Nominal saw length approximately 43' - 6"

- Moving top saw guide (20" minimum to 42-1/2" maximum from top of bunk)

- Motorized top wheel lift c/w manual tilt wheel

- Air strain diaphragm cylinders c/w air tank and guage

- Dead top and bottom arbor assemblies c/w heavy duty double row spherical roller bearings

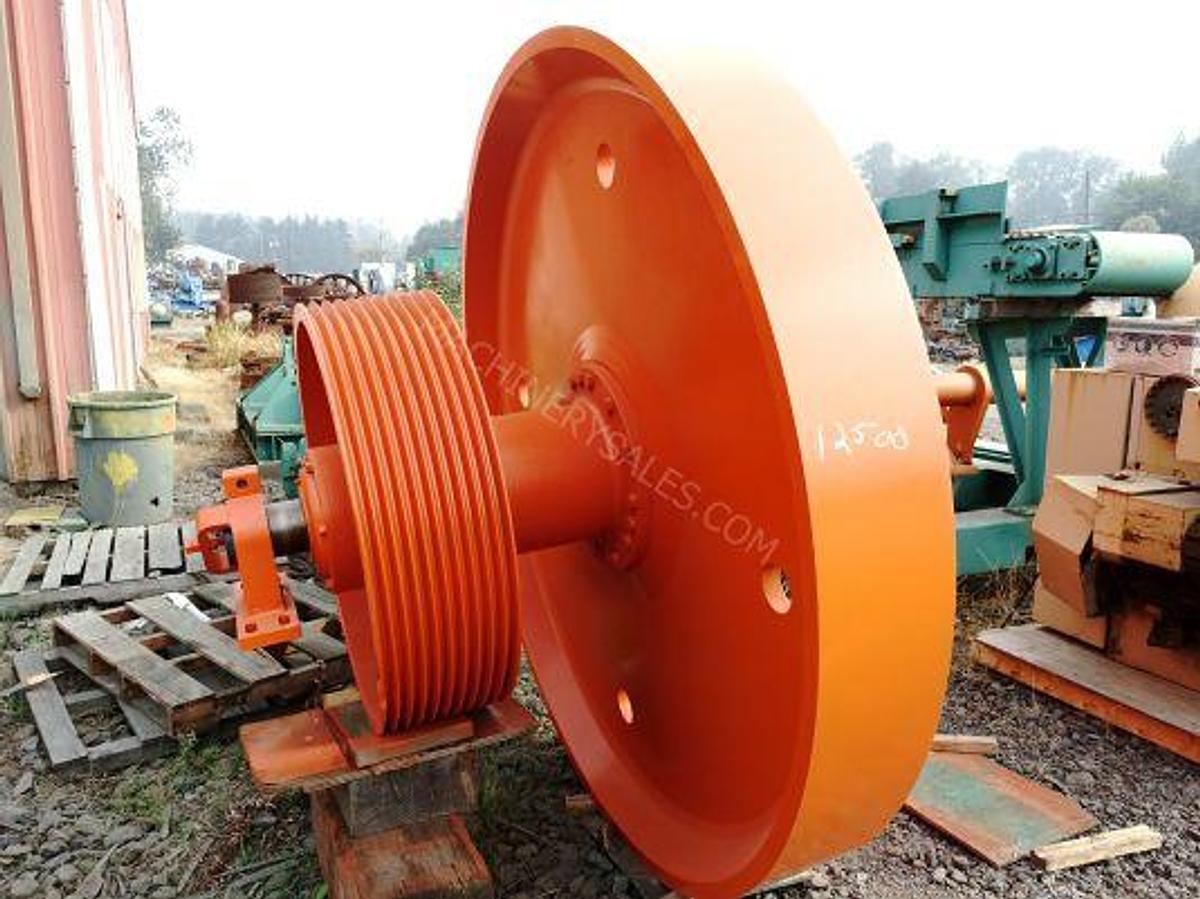

- Top wheel rim thickness is 1-3/4" and bottom wheel rim thickness is 1-3/4" with a 11" face width

- Belt drive assembly

- 200 HP @ 1200 RPM 460V/3PH/60 HZ arbor motor (NOT INCLUDED)

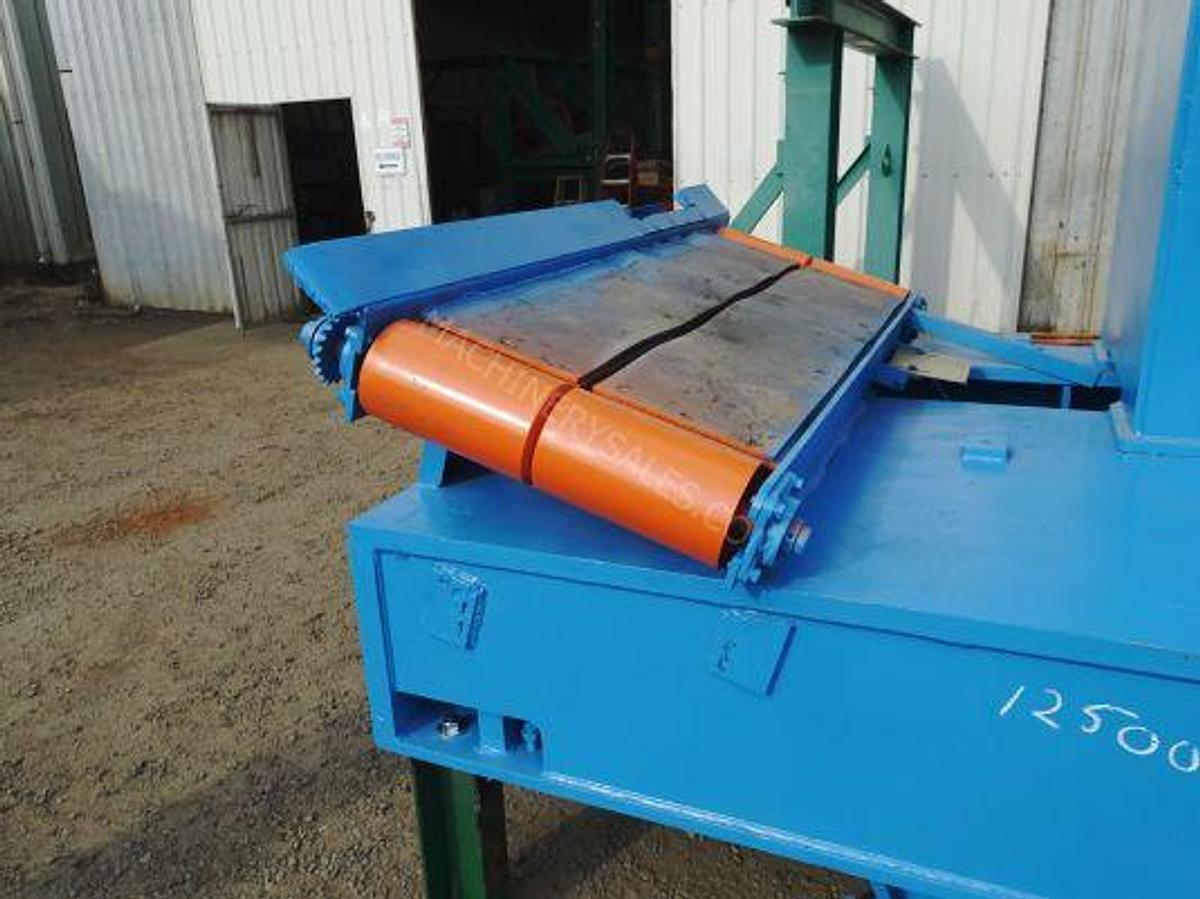

- Off bearing belt assemble (no belt) designed for 17 degree slant arrangement (no drive)

- Air operated top wheel guard

- No controls

- No Auto lube system
