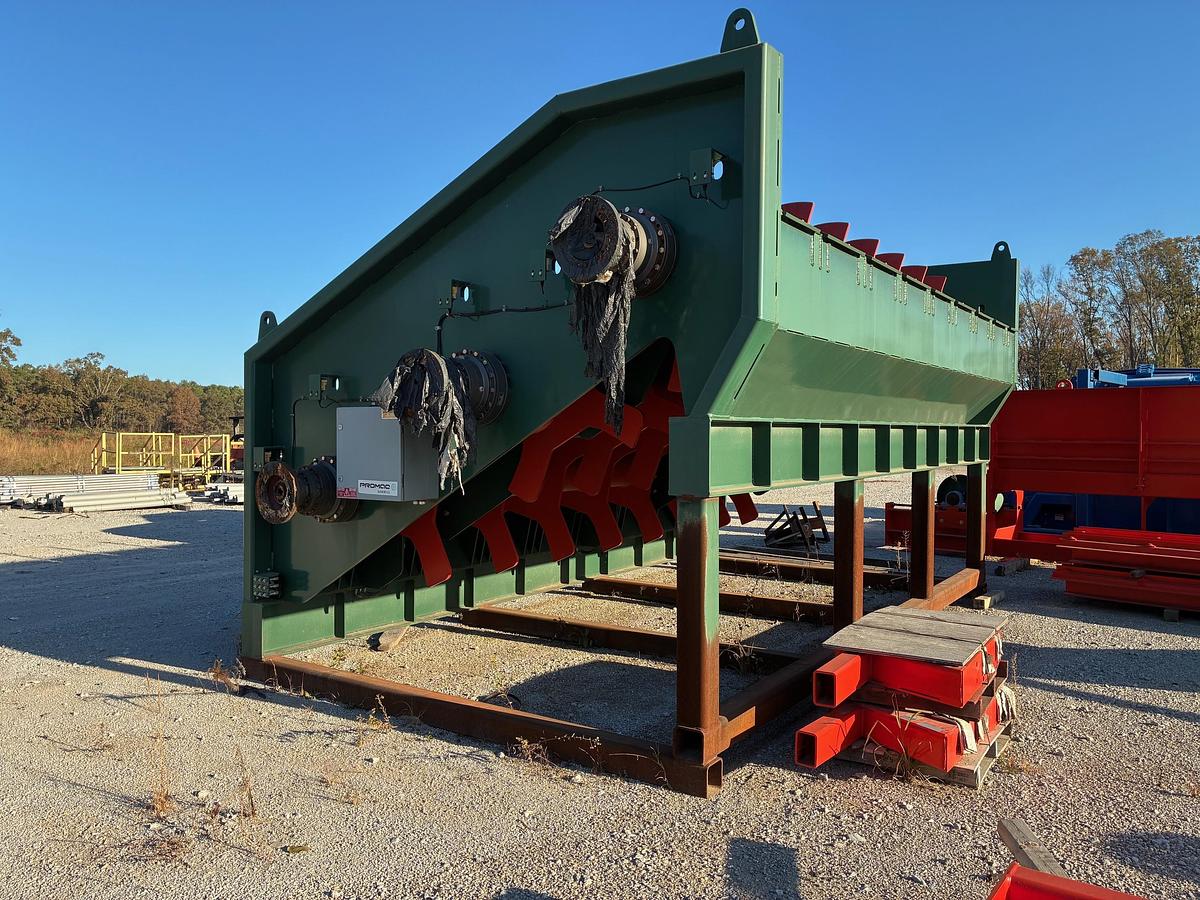

ROTARY LOG SINGULATOR 22" X 16 FEET - ELECTRIC (NEW/UNUSED)

SPECIFICATIONS:

SPECIES: Southern Yellow Pine

LOG LENGTHS: 8 FEET TO 16 FEET

LOG DIAMETERS: 4” TO 22”

SPEEDS: (30) LOGS/MINUTE MAXIMUM

ROTARY LOG SINGULATOR INCLUDES:

- 3 STAGES X 18 FEET WIDE FRAME

- 30 CYCLES PER MINUTE MAXIMUM

- 1 BONFIGLIOLI PLANETARY REDUCER ON EACH STAGE (110:1 RATIO REF)

- 1-20 HP TENV ELECTRIC MOTOR ON EACH STAGE (BALDOR, VECTOR DUTY C/W ENCODERS)

- 3-H.D. 10” DIA. SCH. 120 PIPE LOG LIFT AXLES

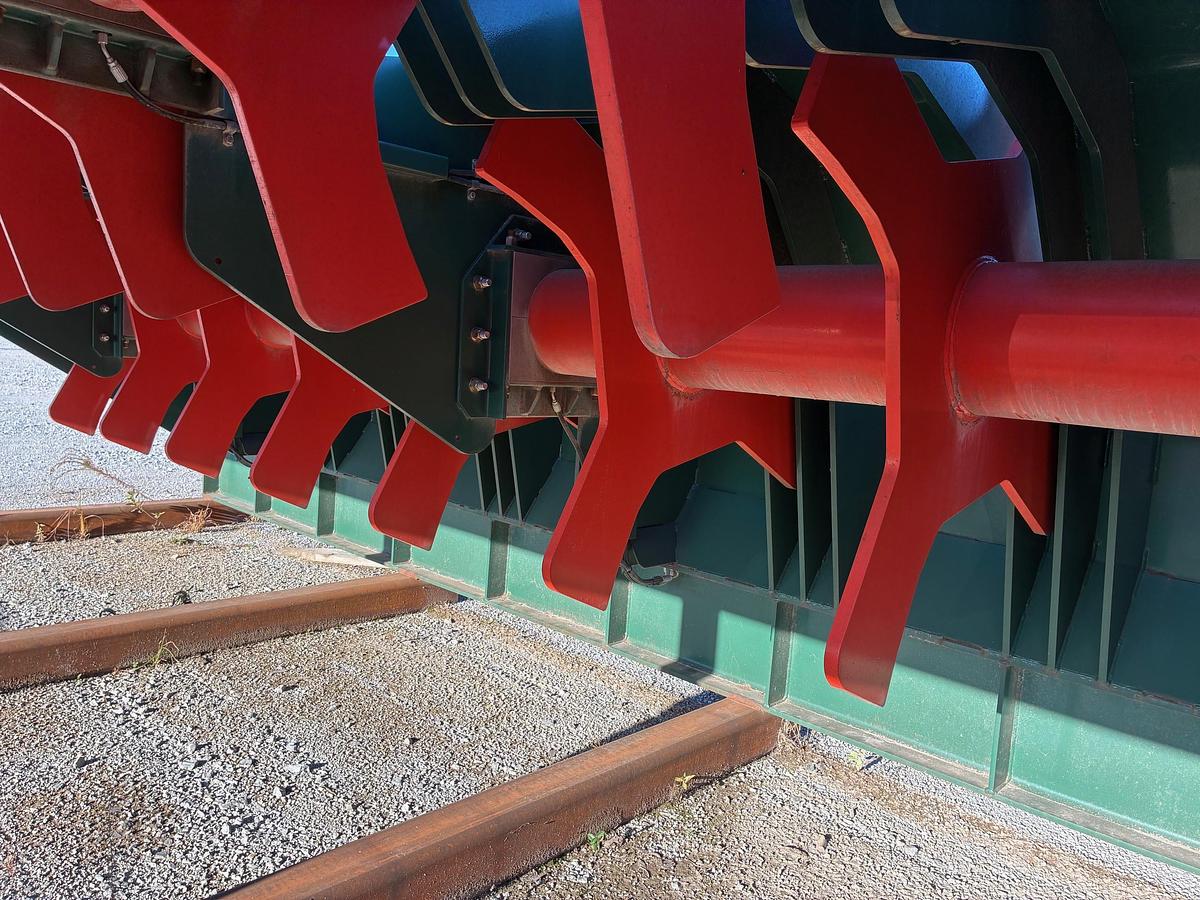

- 1” THICK LIFT ARM PLATES (APPROXIMATELY 25” C/C, 8 ROWS)

- 5/8” THICK SHEETING ON ALL STAGES

- ¾” RIB PLATES

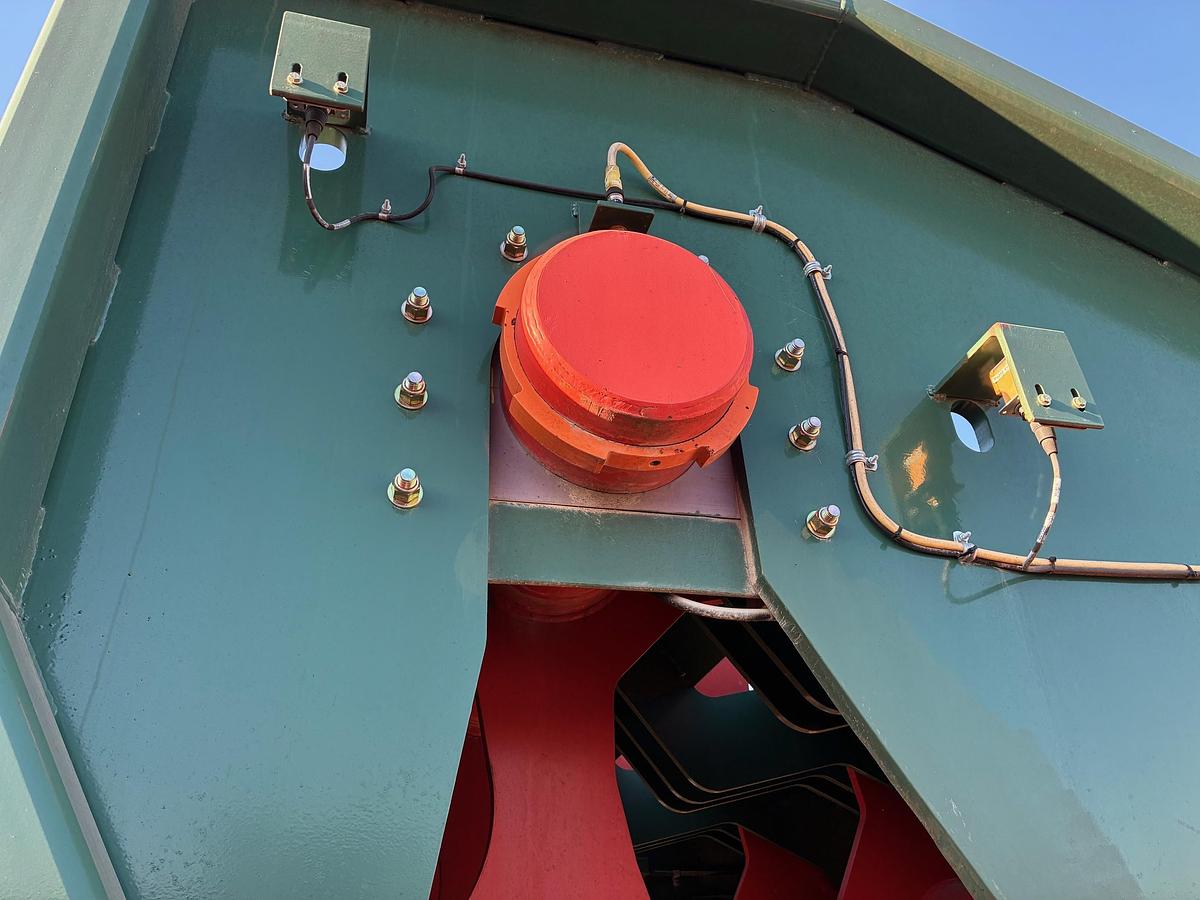

- 1” THICK SIDE WALL PLATE WITH TUFF-CAST BEARINGS

- 1 1/4” THICK SIDE WALL PLATE @ DRIVE END

- “LOW MAINTENANCE” LIFT AXLE/CARRIAGE ASSEMBLIES

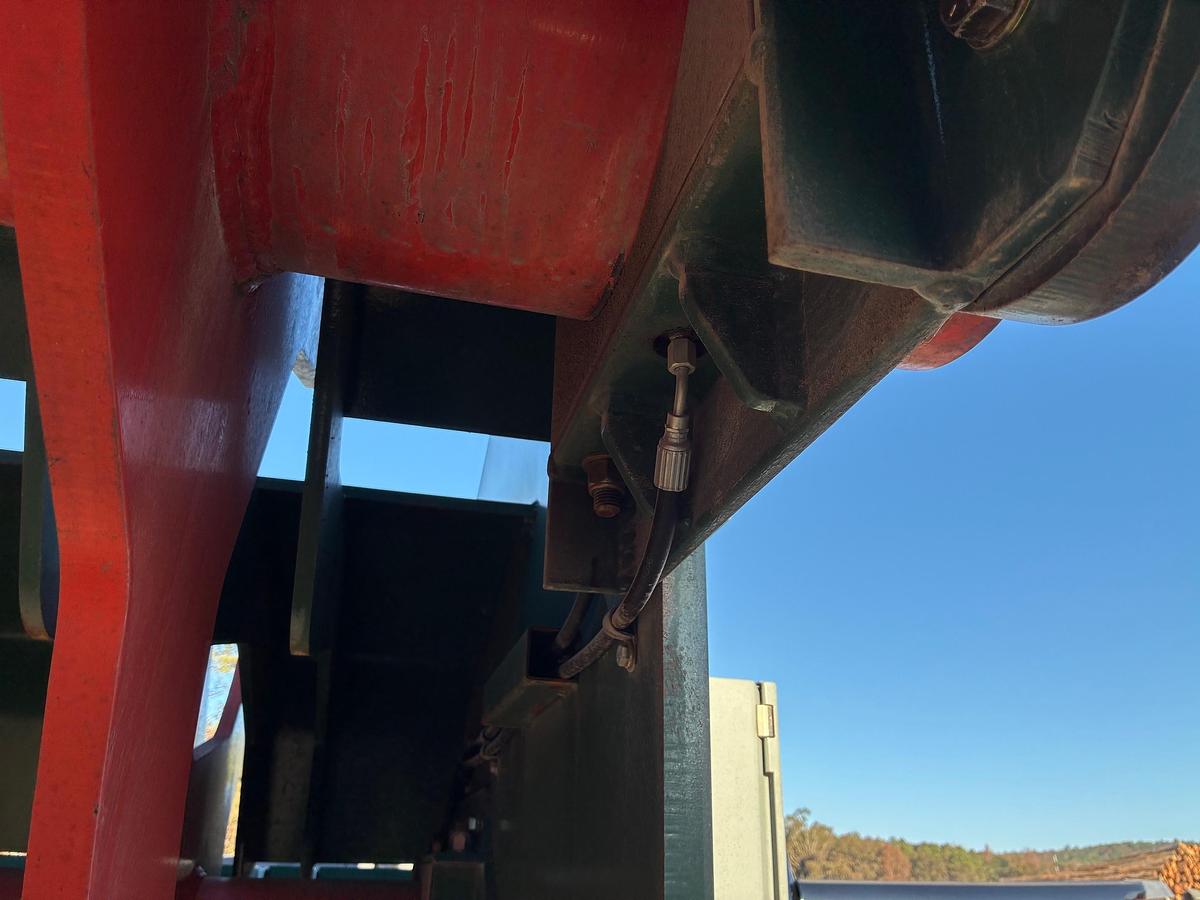

- CENTRAL LUBRICATION MANIFOLD, FEEDING 9 BEARING’S

- PRE-WIRED TO COMMON JUNCTION BOX (TO GREATEST EXTENT POSSIBLE)

- 6 SETS PHOTO EYES FOR AUTOMATIC OPERATION

- 3 PROXIMITY SWITCHES FOR ROTARY ARM LOCATION AND VERIFICATION

THE PHYSICAL SIZE OF THE SINGULATOR IS 11’-8” WIDE X 22’ LONG INCLUDING DRIVES.
