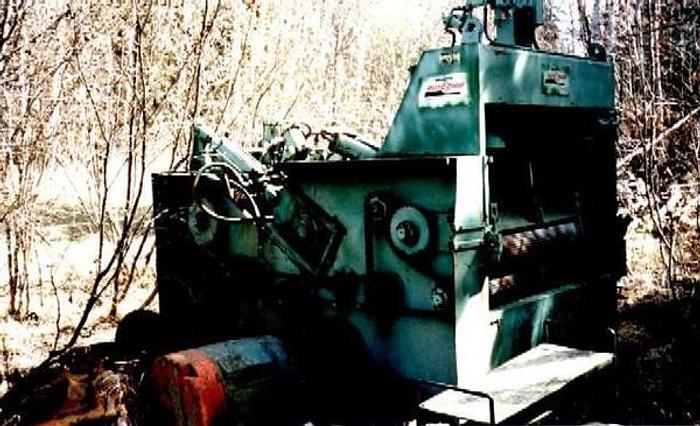

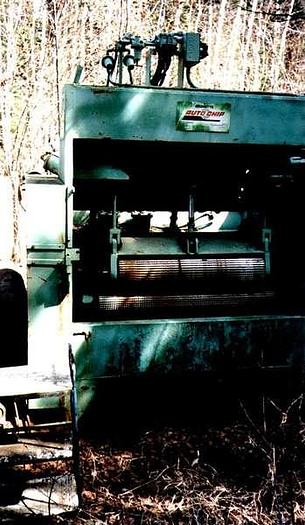

4" X 48" Brunette Chipping Pocket Edger

4" X 48" Brunette Chipping Pocket Edger
Contact us for price
Surrey, Canada
orCall (604) 575-0046
Description
4" X 48" Brunette Chipping Pocket Edger
- Top arbor chipping head with pockets for 4, 6 and a shifting segment for 8 - 12 widths
- 2" wide segments on head
- Fixed pocket section is 24" wide and chips both the top and the sides
- Shifting section is 8 wide on stacked air. This section will do side chipping only or can be closed to totally chip a 10 wide slab
- Top head shifts up and down on angled slide with two 8 x 12 air cylinder
- 6 bedrolls knurled & chromed 5 diameter x 48 wide
- 4 pressrolls, driven, knurled & chromed 10 diameter x 36 wide on air cylinder
- 16 diameter x 9-1/2 wide x 8 V sheave on arbor
- Dimensions 9L x 6.6W x 78 H
Specifications
Condition | Used |
Stock Number | 1378 |
